3 way pressure compensated flow control (Knob Style)

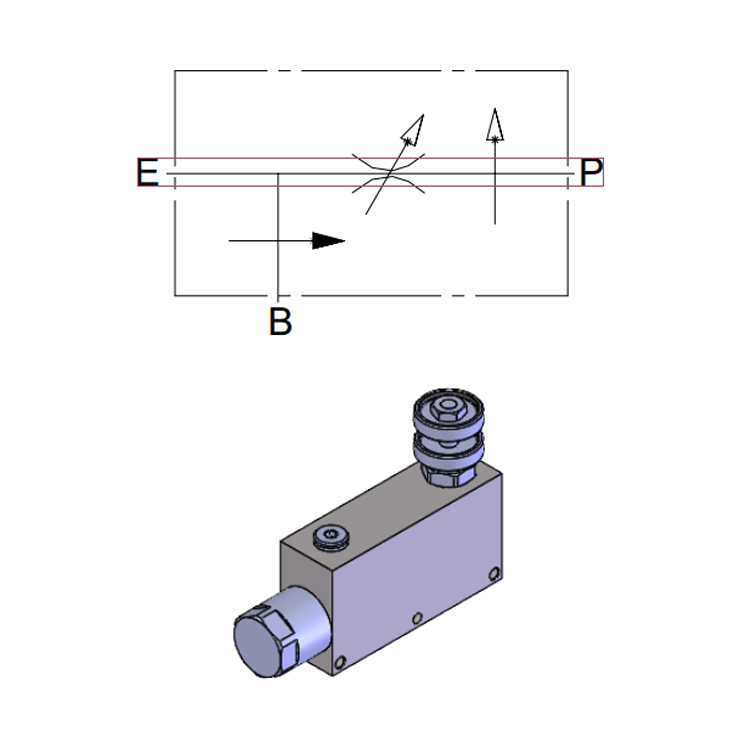

A 3-way pressure compensated flow control valve (knob) that diverts excess flow to the pressure line rather than tank — keeping energy in the system and maintaining precise, consistent flow to the actuator. Available in 3/8" to 1" BSPP, with NBR or Viton seal options.
Key Specifications
- Max operating pressure: 350 bar
- Port thread: BSPP (3/8", 1/2", 3/4", 1")
- Inlet max flow (3/8"): 60 l/min
- Inlet max flow (1/2"): 80 l/min
- Inlet max flow (3/4"): 120 l/min
- Inlet max flow (1"): 200 l/min
- Regulated max flow (3/8"): 50 l/min
- Regulated max flow (1/2"): 60 l/min
- Regulated max flow (3/4"): 100 l/min
- Regulated max flow (1"): 170 l/min
- Seal options: NBR (standard) or Viton
- Fluid temperature range: –20°C to +90°C
- Ambient temperature range: –20°C to +50°C
- Fluid viscosity standard: ISO 3448
- Filtration standard: ISO 4406
- External finish: Zinc plated
| Thread E-P-B | Inlet Q Max (l/min) | Regulated Q Max (l/min) |
| 3/8 BSPP | 60 | 50 |
| 1/2 BSPP | 80 | 60 |
| 3/4 BSPP | 120 | 100 |
| 1" BSPP | 200 | 170 |
