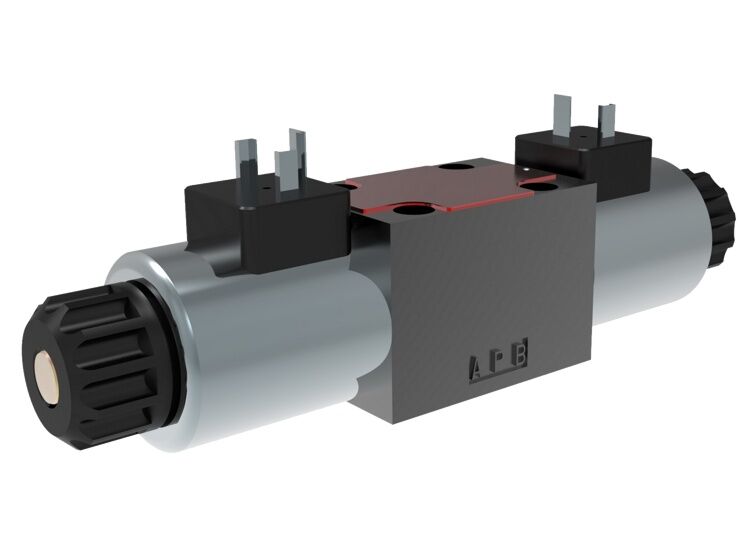

Argo-Hytos CETOP 3 Solenoid Operated Directional Control Valve
Rated to 350 bar and 80 l/min, it delivers reliable on/off flow control in a compact CETOP 3 (D03) subplate-mount form factor — engineered for high transmitted power with low pressure drop.
Available in 4/2 and 4/3 configurations, the RPE3-06 suits a wide range of switching duties. Its five-chamber housing minimises sensitivity to fluid viscosity variation, while interchangeable DC solenoids (with optional AC rectifier bridge) and 360° rotatable coils offer genuine installation flexibility. Optional soft-shift spool control, inductive spool position sensing, and enhanced corrosion protection for mobile environments round out a well-specified package.
Key specifications:
- Max. flow: 80 l/min
- Max. pressure: 350 bar
- Interface: ISO 4401 / DIN 24340 (CETOP 03)
- Configurations: 4/2 and 4/3
- Solenoid supply: DC standard; AC with built-in rectifier available
- Corrosion protection: 240 h salt spray (standard); 520 h option for mobile use
- Options: soft-shift spool speed control, inductive position sensor (NO/NC)
