Badestnost Z50 Monoblock Valve
The 40L valve group has been upgraded from P40 to Z50 to improve the working parameters. The new body has additional machining of the spool bore for higher precision and higher nominal flow rate.

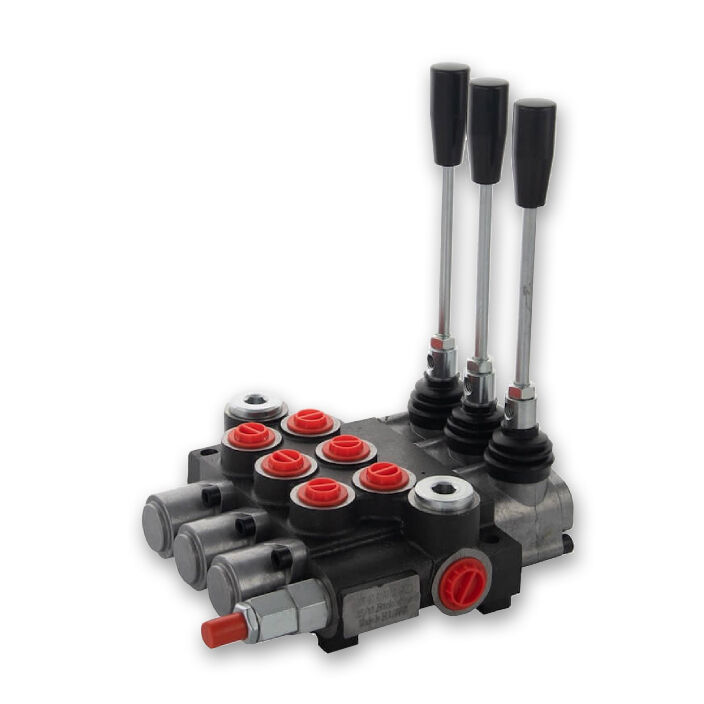

Manually or mechanically controlled hydraulic directional control valve Z50 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.
Construction: Z50 is a mono-block distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.
- Max flow: 40 LPM
- Max nominal pressure on P: 250 bar
- Max pressure on A+B: 300 bar
- Max pressure on T: 50 bar
- Relief valve range: 160-315 bar
- Relief preset range: 220 bar
- Port size P-T-N: 1/2″ BSPP
- Port size A-B: 3/8″ BSPP
Mounting: The distributor is fixed with two M8 bolts
| Model | Nominal Flow (L/min) | Spool Stroke (mm) | Actuating Force (N) |
| Z50 | 40 | 6 | < 200N |
