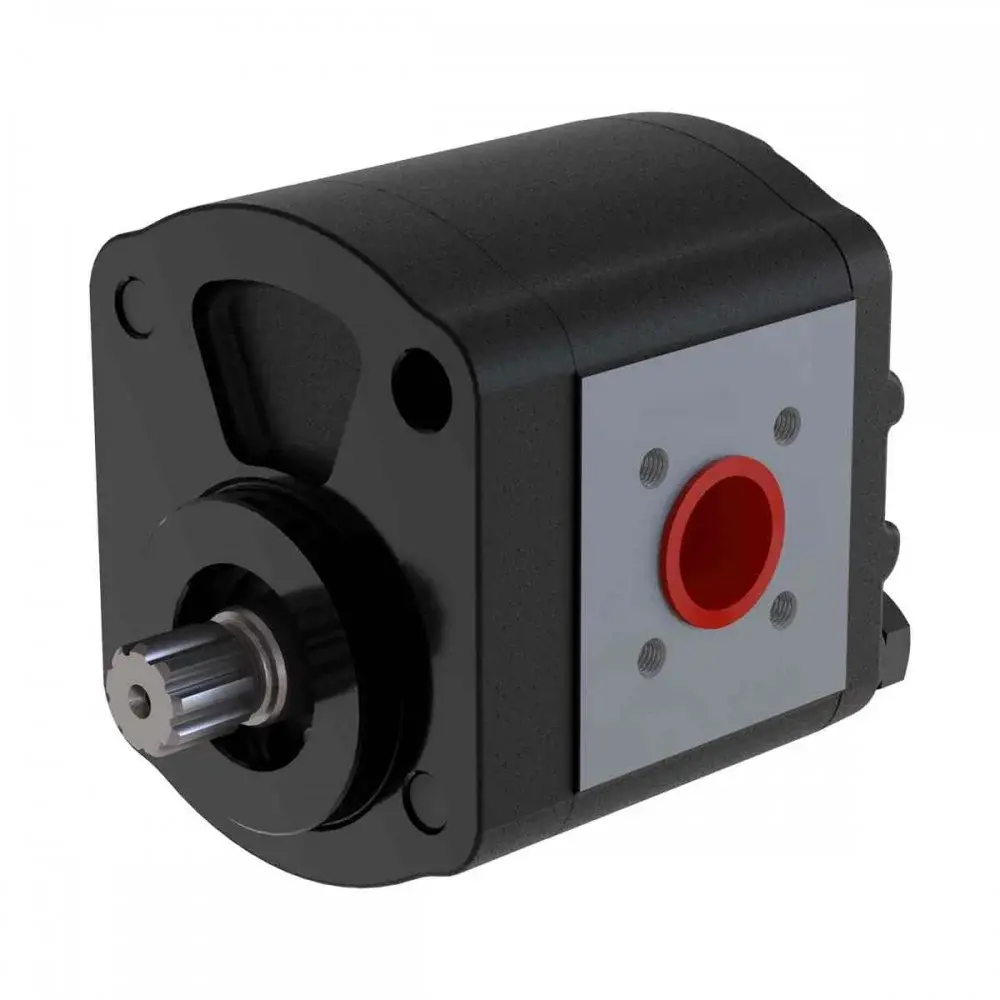

Blue Ascend DKM20 Cast Iron Gear Motor (Group 20)

Blue Ascend DKM20 Cast Iron Gear Motor (Group 20)

Model series: DKM20

A compact, heavy-duty gear motor built for demanding hydraulic applications. The DKM20 features a spheroidal cast iron body for exceptional strength under sustained pressure, with 11 displacement options spanning 3.9 cc/rev to 27.9 cc/rev. Whether you're driving conveyors, winches, or auxiliary hydraulic circuits, the DKM20 delivers reliable torque in a tight envelope.

Key Specifications

• Displacement range: 3.9 – 27.9 cc/rev (11 variants)
• Maximum pressure: up to 280 bar
• Maximum speed: up to 3,500 rpm
• Minimum speed: 600 – 650 rpm (model dependent)
• Body: Spheroidal cast iron

Why FPD?

FPD supplies Blue Ascend hydraulic gear motors to trade customers across New Zealand. Our team can help you match the right displacement variant to your circuit requirements. Call us on (07) 849 5771 or email [email protected].
