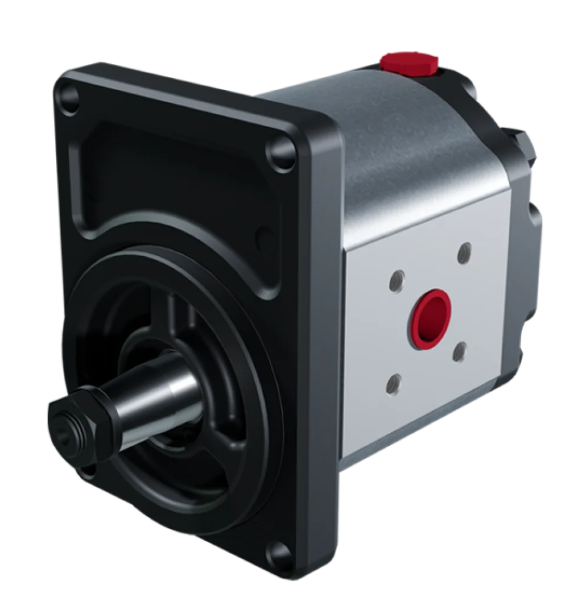

Blue Ascend Fan Motor – Group 30
Model: APM30
Heavy-Duty Hydraulic Fan Motor for High-Flow Cooling Circuits
The Blue Ascend APM30 is a larger-frame aluminium gear motor designed for high-flow hydraulic cooling fan applications. With displacements from 19.0 to 56.0 cc/rev and pressure ratings up to 230 bar, it handles the cooling demands of larger machines and high-output engines.
Key Specifications:
- Displacement range: 19.0 – 56.0 cc/rev
- Maximum pressure: 230 bar (smaller displacements); 180 bar (larger displacements)
- Maximum speed: up to 3,000 rpm
- Minimum speed: 500 rpm
- Body type: aluminium
Typical Applications:
Fan drive circuits in heavy construction equipment, large agricultural machinery, road transport vehicles, forestry machines, and industrial plant with high heat rejection requirements.
Why FPD?
FPD stocks Blue Ascend fan motors to support NZ operators who need a reliable, cost-effective cooling motor with solid technical support behind it. Talk to our team about your system specs. Call (07) 849 5771.
| Model | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| APM30.190 | 19 | 230 | 3000 | 500 |
| APM30.220 | 22 | 230 | 3000 | 500 |
| APM30.250 | 25 | 230 | 3000 | 500 |
| APM30.280 | 28 | 230 | 3000 | 500 |
| APM30.320 | 32 | 230 | 2750 | 500 |
| APM30.350 | 35 | 210 | 2750 | 500 |
| APM30.380 | 38 | 210 | 2750 | 500 |
| APM30.420 | 42 | 210 | 2750 | 500 |
| APM30.450 | 45 | 210 | 2500 | 500 |
| APM30.510 | 51 | 200 | 2250 | 500 |
| APM30.560 | 56 | 180 | 2000 | 500 |
