Cartridge Single Pilot Operated Check Valve

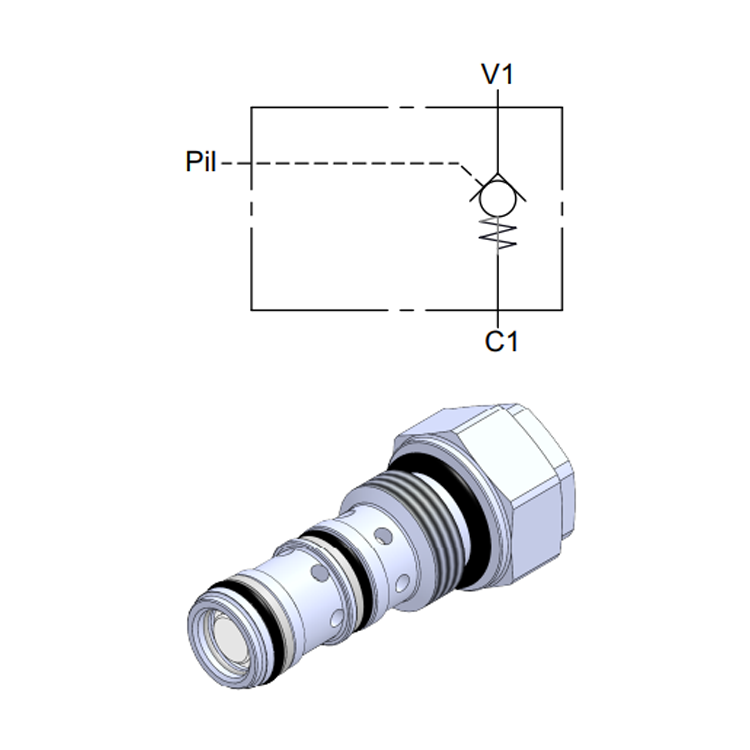

Compact cartridge-format single pilot operated check valve, designed to screw directly into a standard machined cavity in a manifold or valve block. It provides pilot-released load-holding within the manifold envelope, without external plumbing between the valve and block.

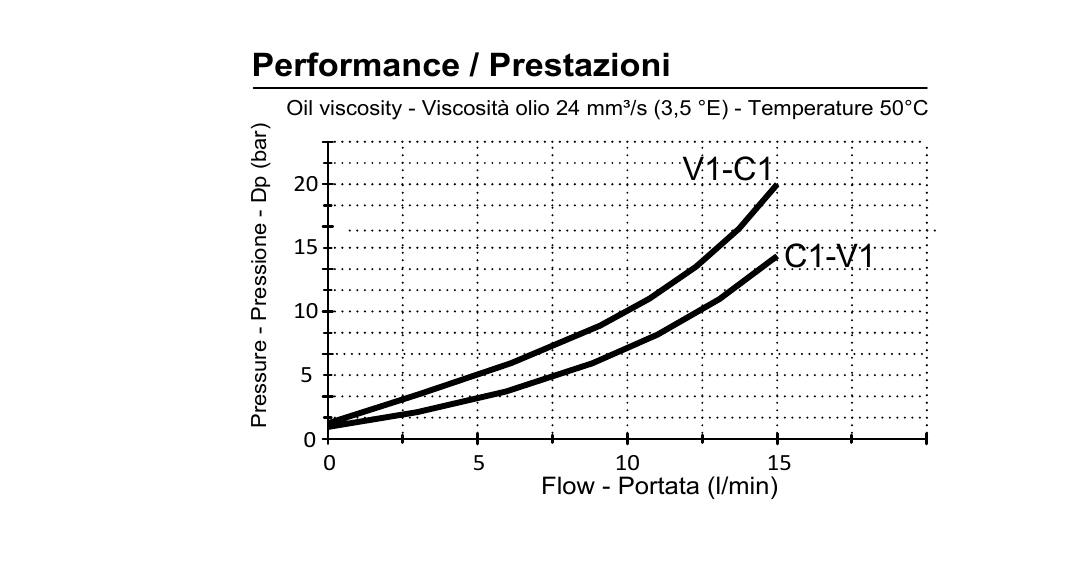

The performance graph shows two curves — V1 to C1 (free-flow direction) and C1 to V1 (pilot-opened direction) — confirming the valve's behaviour under both conditions.
Key Specifications
- Type: Cartridge single pilot operated check valve
- Thread: M18x1.5 | Tightening torque: 35–40 Nm
- Max. pressure: 350 bar
- Max. flow: 15 l/min
- Pilot ratio: 3.2:1
- Cracking pressure: 5 bar
- Cavity code: DO-590.005.23
- Seal options: NBR 70 Shore A (standard)
- Pilot piston O-ring: available (M) or without (N)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
| Thread (M) | Cavity Code | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| M18x1.5 | DO-590.005.23 | 350 | 15 | 3.2:1 |
