Check Valve Reversible Insert, Ball Type

Check Valve Reversible Insert, Ball Type

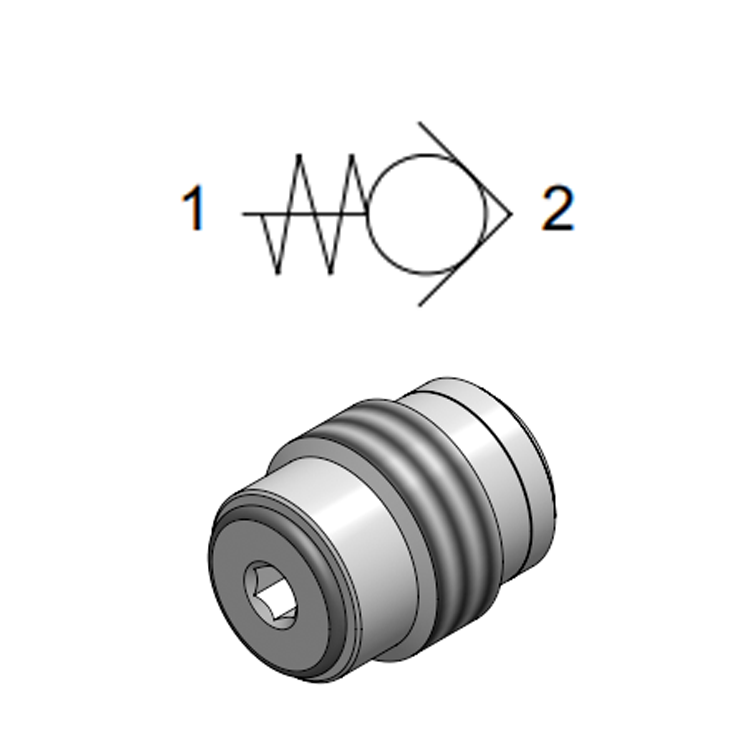

Ball-type check valve insert that screws directly into a standard BSPP port. The reversible design means the check direction can be set at installation by the orientation in which it is fitted — useful where circuit flow direction needs to be confirmed in the field before committing.

The ball seating element offers robust, low-maintenance check performance across the full port size range.

Key Specifications

• Type: Reversible ball-type thread-in check valve insert
• Port sizes: 1/4", 3/8", 1/2", 3/4" BSPP
• Max. pressure: 350 bar (all sizes)
• Max. flow: 20 l/min (1/4") up to 80 l/min (3/4")
• Cracking pressure: 0.5 bar (all sizes)
• Reversible — check direction set by installation orientation
• No separate cavity required — installs directly into BSPP port
• Fluid temperature: -20°C to +90°C
• Filtration standard: ISO 4406
