Cross-Over Relief Valve, OMP/OMR Motor Flangeable
Dedicated cross-over shock valve manifold designed to mount directly to the flange face of Danfoss OMP and OMR orbital motors. By eliminating hose connections between motor and protection valve, it provides a compact, low-leakage overload and anti-cavitation solution for drive and winch applications using OMP/OMR series motors.

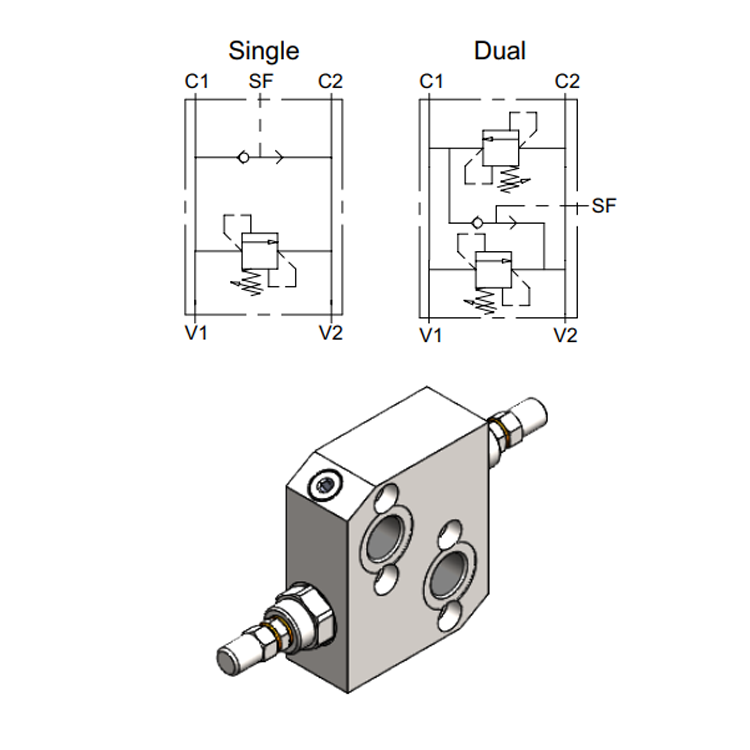

Available in four variants: single or dual cross-over effect, each optionally combined with a 1/4" BSPP brake release port.
Key Specifications
- Type: Cross-over direct acting relief valve, OMP/OMR motor flange mount
- Port size (C1-C2): 1/2" BSPP
- Brake release port (SF): 1/4" BSPP (SF variants only)
- Max. pressure: 350 bar
- Max. flow: 60 l/min

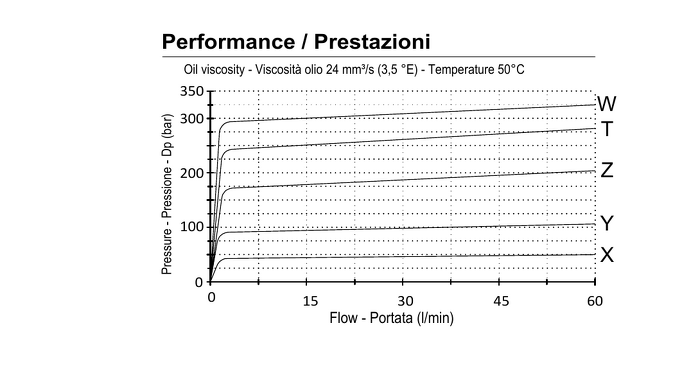

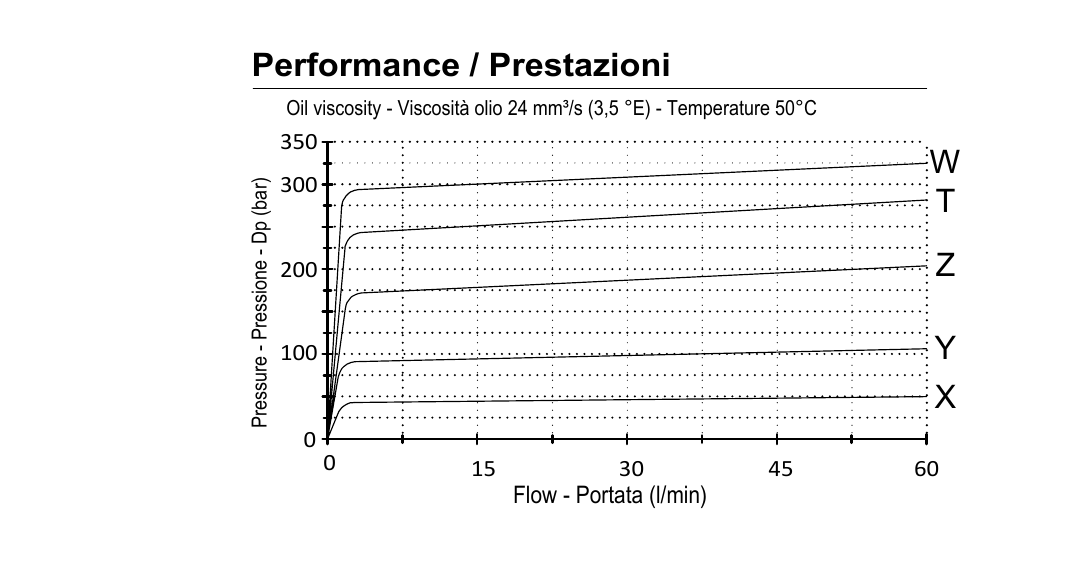

- Setting ranges: X: 10–50 bar | Y: 20–100 bar (75 bar std) | Z: 10–180 bar (std, 90 bar) | T: 50–250 bar | W: 80–300 bar
- Variants: RVD-OMP-OMR-2 (dual) | RVD-OMP-OMR-2-SF (dual + brake release) | RVD-OMP-OMR-1 (single) | RVD-OMP-OMR-1-SF (single + brake release)
- Manifold material: Zinc plated steel
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread C1-C2 | SF Port | Denomination | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 1/2 BSPP | - | RVD-OMP-OMR-2 (Dual) | 350 | 60 | X: 10-50 bar | 30 |
| 1/2 BSPP | 1/4 BSPP | RVD-OMP-OMR-2-SF (Dual + brake release) | 350 | 60 | Z: 10-180 bar (Std) | 90 |
| 1/2 BSPP | - | RVD-OMP-OMR-1 (Single) | 350 | 60 | T: 50-250 bar | 130 |
| 1/2 BSPP | 1/4 BSPP | RVD-OMP-OMR-1-SF (Single + brake release) | 350 | 60 | W: 80-300 bar | 150 |
