Danfoss Series 45 Open Circuit Axial Piston Pumps

Danfoss Series 45 Open Circuit Axial Piston Pumps

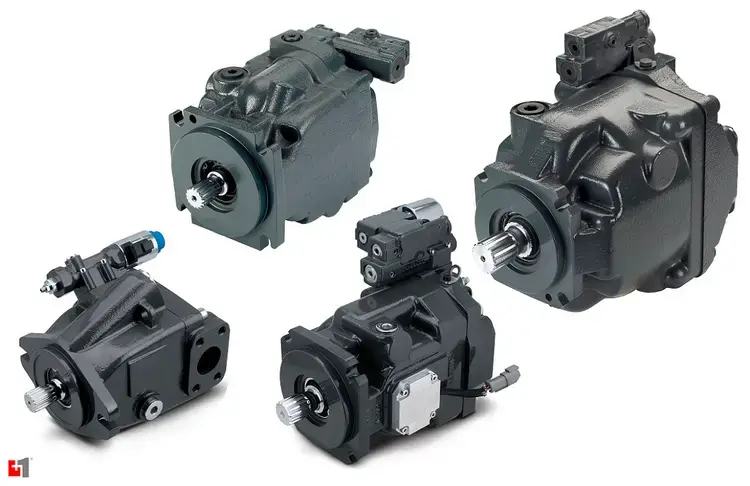

The Danfoss Series 45 is a proven variable-displacement open-circuit axial piston pump built for the rigours of mobile equipment. With four frame sizes, displacements from 25 to 147 cm³/rev, and pressure ratings up to 310 bar, it's engineered to deliver highly responsive, stable performance across a wide range of duty cycles — and the flexibility to match new machine configurations.

Key Specifications

• Displacement range: 25–147 cm³/rev (four frame sizes: K2, J, F, E)
• Maximum continuous pressure: up to 310 bar (4,495 psi)
• Maximum continuous speed: up to 3,450 rpm
• Maximum theoretical flow: up to 308.7 l/min
• Mounting flanges: SAE B and SAE C options depending on frame
• Broad control options including fan drive control (FDC) and electronic torque limiting (ETL)
• Extensive shaft, flange, and porting configurations available
• Lead-free (environmentally friendly) options available
• Robust, proven design for long service life

Typical Applications

• Agriculture: harvesters, sprayers
• Construction: motor graders, backhoe loaders, wheel loaders
• Material handling: reach stackers, telehandlers
• Forestry: forwarders and harvesters
• Quarrying: screeners and crushers
