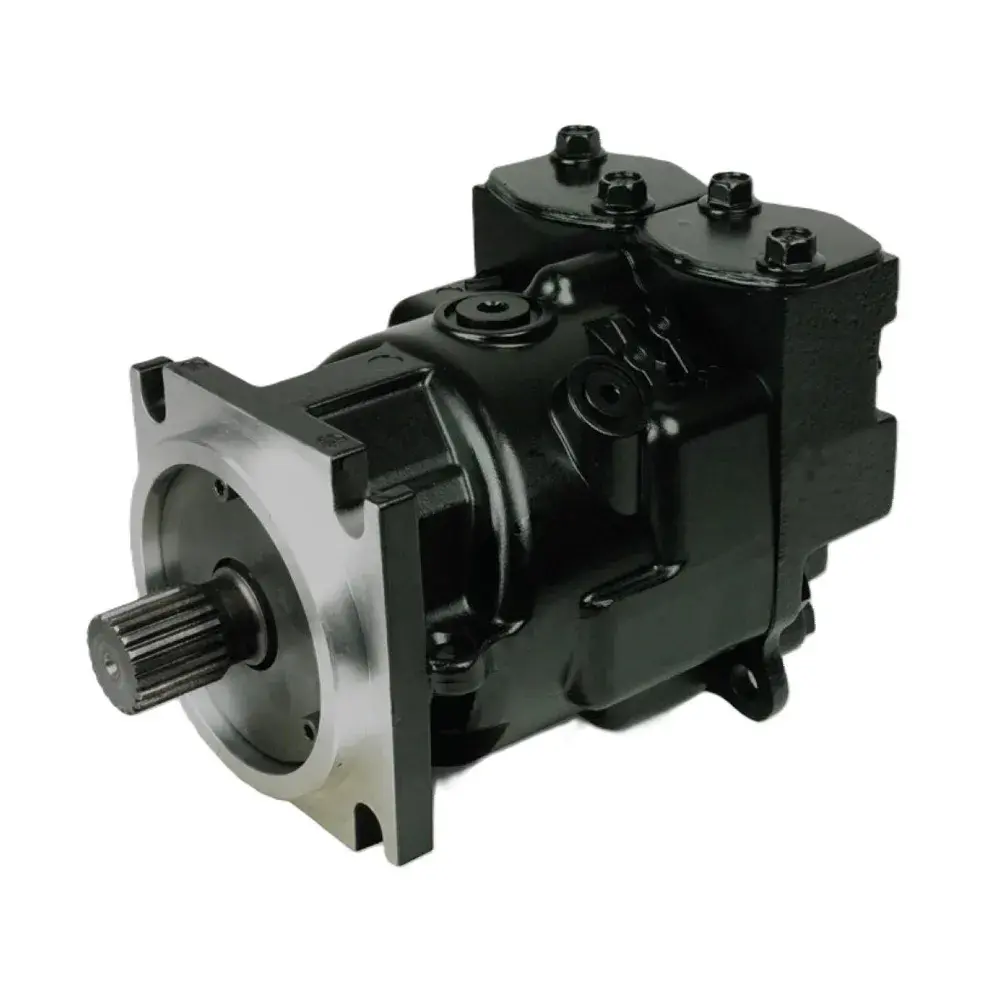

Danfoss Series 90 Piston Motor
The Danfoss Series 90 is an axial piston motor for closed circuit applications.
Series 90 motors use the parallel axial piston/slipper design in conjunction with a fixed swashplate. They can intake/discharge fluid through either port; they are bidirectional. They also include an optional loop flushing feature that provides additional cooling and cleaning of fluid in the working loop.
- Four sizes of fixed displacement motors
- SAE and cartridge mount configurations
- Efficient axial piston design
- Proven reliability and performance
- Compact, lightweight
| Model | Max Displacement (cm3/rev) | Max Corner Power (kW) | Torque (Nm/bar) | SAE Weight (kg) |
| 055 MF | 55 | 187 | 0.88 | 22 |
| 075 MF | 75 | 237 | 1.19 | 26 |
| 100 MF | 100 | 292 | 1.59 | 34 |
| 130 MF | 130 | 354 | 2.07 | 45 |
