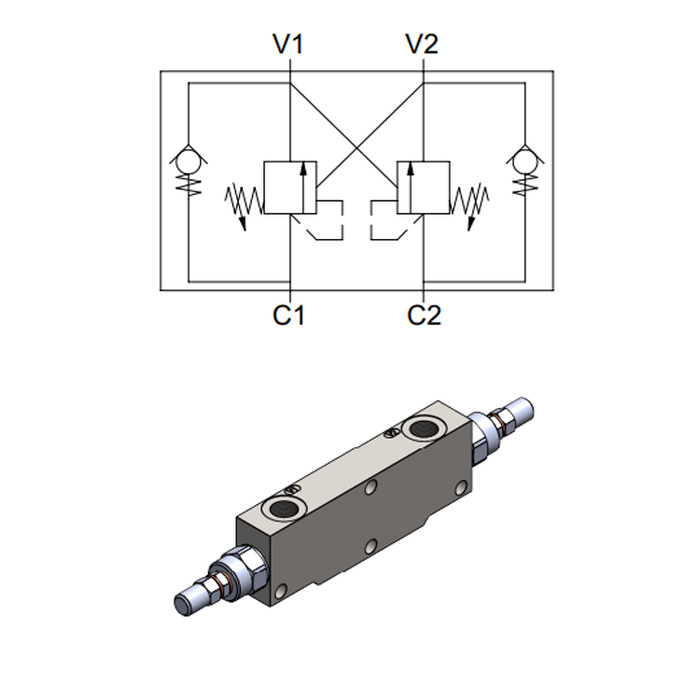

Double Effect Overcenter Valve, Super Compact Series
The super compact double-acting counterbalance valve — the smallest form factor in the LHV-2 family, designed for tight-space mobile applications requiring bidirectional load holding at up to 350 bar.
Key Specifications:
- Valve type: Double effect overcenter — super compact series
- Max operating pressure: 350 bar
- Port connections V & C: Female BSPP — 1/4" or 3/8"
- Max flow: 30 l/min (1/4"), 40 l/min (3/8")
- Standard pilot ratio: 4.25:1 (8:1 and 11:1 available on request)
- Setting range: 60–350 bar (1/4") / 30–350 bar (3/8")
- Standard setting: 300 bar
- Fluid temperature: −20 °C to +90 °C
- Ambient temperature: −20 °C to +50 °C
- Filtration standard: ISO 4406
- Standard seals: NBR 70 Shore A | Viton available on request
- Manifold material: Zinc plated steel
- Adjustment options: Steel cap (std) or tamper-proof cap

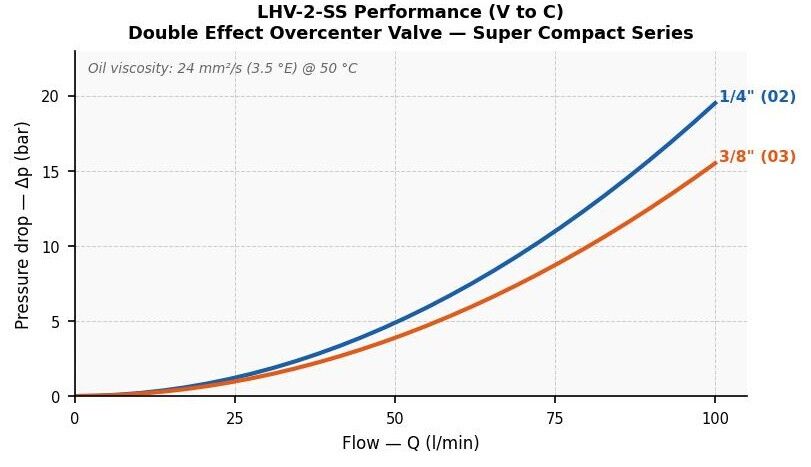

| Port Size (V-C) | Weight (kg) | Setting Range (bar) | Std Setting (bar) | Max Flow (l/min) | Pilot Ratio |
| 1/4" BSPP | 1.42 | 60–350 | 300 | 30 | 4.25:1 |
| 3/8" BSPP | 1.39 | 30–350 | 300 | 40 | 4.25:1 |
