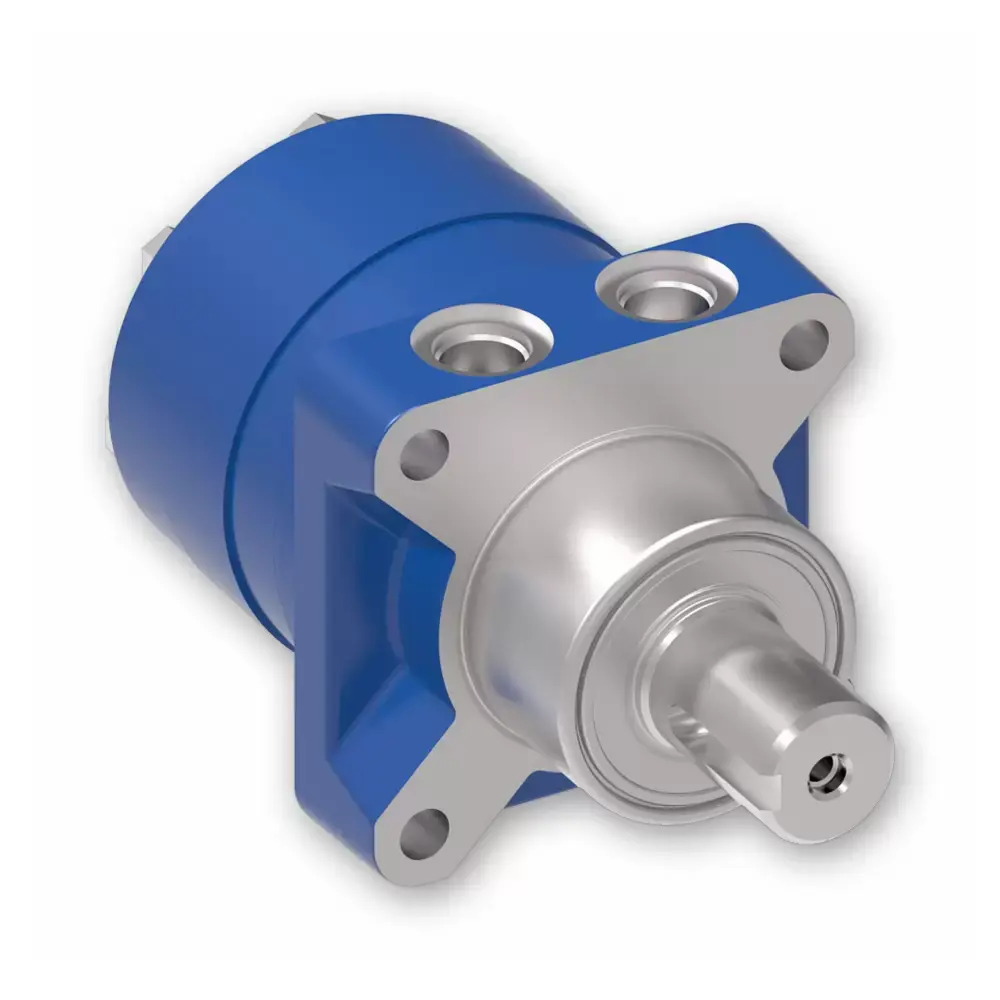

Eaton Delta Series Disc Valve Motor
Eaton has packed this motor with "best in class" features: proven disc valve technology for top efficiency in its class, the lowest no-load pressure drop for cooler, longer-life operation, and the highest side-load capacity available — 4,500 lbs at 3" from the mount face. A front bearing protects the shaft seal, making it genuinely leak-resistant in tough conditions.
Features and benefits
- Time-proven Char-Lynn components — reliability you can count on
- Disc valve technology — highest efficiencies in its class
- Leak-resistant design — front bearing protects the shaft seal
- High side-load capacity — ideal for direct wheel-drive duty
- Shaft sizes up to 1-5/8", with 3-1/4" front pilot and 5" rear pilot
- STC ports available
Typical applications:
Scissor lifts, boom lifts, industrial sweepers and mowers — plus a direct replacement option for Parker TF/TG and White RE motors.
Stocked and supported in New Zealand by Fluid Power Distributors. Request a Quote or talk to our team to spec the right Delta motor for your machine.
| Base Model | cm3/rev | Max. speed @ Max. intermittent flow (rev/min) | Max Pressure (bar) | Max Cont Torque (Nm) | Max Cont Oil Flow (l/min) | Power (KW) |
| Delta 069 | 113 | 831 | 205 | 320 | 75 | 27.8 |
| Delta 089 | 146 | 778 | 205 | 429 | 75 | 35 |
| Delta 121 | 198 | 516 | 205 | 554 | 75 | 29.9 |
| Delta 143 | 234 | 485 | 205 | 651 | 75 | 33.1 |
| Delta 154 | 252 | 450 | 205 | 712 | 75 | 33.6 |
| Delta 183 | 300 | 379 | 205 | 844 | 75 | 33.5 |
| Delta 212 | 347 | 327 | 205 | 933 | 75 | 32 |
| Delta 241 | 395 | 288 | 190 | 972 | 75 | 29.3 |
| Delta 287 | 470 | 241 | 170 | 1039 | 75 | 26.2 |
| Delta 331 | 542 | 209 | 140 | 994 | 75 | 21.8 |
| Delta 396 | 649 | 175 | 120 | 1028 | 75 | 18.8 |
| Delta 460 | 754 | 151 | 105 | 985 | 75 | 15.6 |
