Eaton VIS40 Series Low Speed High Torque Motor

Eaton VIS40 Series Low Speed High Torque Motor

Serious torque, compact footprint.

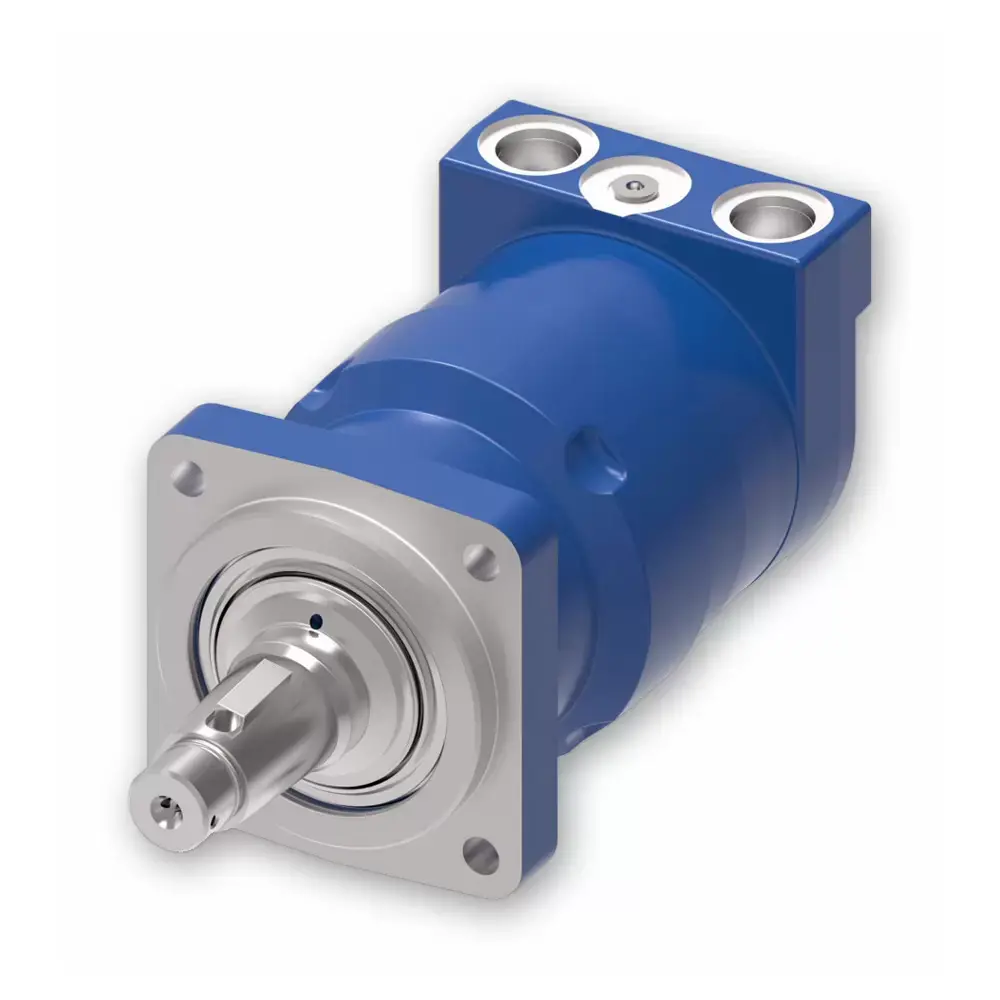

The Eaton VIS40 is the newest and strongest motor in the proven VIS line — a low speed, high torque orbital motor engineered to deliver heavy continuous output in the most compact package Eaton offers. Built for the demanding side of agriculture, construction, forestry and civil machinery, where reliability under load is non-negotiable.

Patented VIS geroler technology — a high-strength geroler, optimised drive geometry and a two-piece pre-loaded balance plate — means stronger starting efficiency, less leakage and higher back-pressure capacity. With just three moving components, it's built to keep working.

• Key features
• Patented VIS geroler technology, just three moving components
• Greatest horsepower density in the VIS motor line
• Maximised drive strength in a compact package
• Two-piece pre-loaded pressure balance plate
• Two-speed, brake and case-flow options for open- and closed-loop circuits
• SAE and ISO mounting, multiple shaft and port configurations

Typical applications

Skid steer loaders and attachments, trenchers, grapples, rough terrain forklifts, wood processing and saw mills, harvesters, snow removal and industrial processing. Stocked and supported locally — talk to our team for the right configuration for your build. Request a quote or enquire today.
