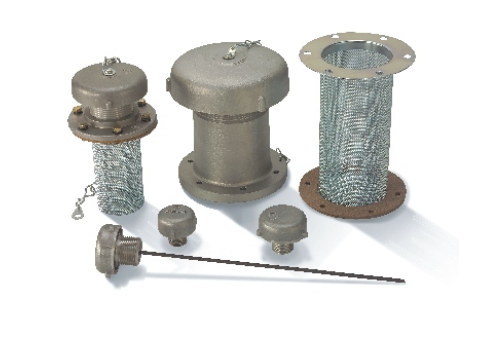

Hydroline ABF Flanged Aluminium Breather
Built tough for demanding hydraulic applications, the ABF series flanged aluminium breather delivers reliable tank venting with a sturdy die-cast aluminium body and stainless steel 100-mesh filtration as standard. Gasket and mounting hardware are included — ready to fit straight out of the box.
Available in five flange sizes from 3/8" through to 2-1/2" BSPP, with a choice of NPT or BSPP threads to suit your installation.
Key specifications:
- Construction: Sturdy aluminium die cast
- Filtration: Stainless steel 100 mesh (standard)
- Mounting: Flange type with gasket and hardware supplied
- Available port sizes: 3/8", 1/2", 3/4", 1-1/4", 2-1/2"
- Thread options: BSPP (B) or NPT (N)
- Optional splash guard (SG) to minimise spillage
- Optional non-venting cap (NV) available
- Optional dip stick: 4", 6", or 8"
| Model | Description | Port Size | Thread Options | Filtration | Gasket & Hardware Included | Splash Guard | Dip Stick Option |
| ABF-03 | Flanged Aluminium Breather | 3/8" | BSPP / NPT | SS 100 Mesh | Yes | Optional (SG) | Optional (4", 6", 8") |
| ABF-04 | Flanged Aluminium Breather | 1/2" | BSPP / NPT | SS 100 Mesh | Yes | Optional (SG) | Optional (4", 6", 8") |
| ABF-06 | Flanged Aluminium Breather | 3/4" | BSPP / NPT | SS 100 Mesh | Yes | Optional (SG) | Optional (4", 6", 8") |
| ABF-10 | Flanged Aluminium Breather | 1-1/4" | BSPP / NPT | SS 100 Mesh | Yes | Optional (SG) | Optional (4", 6", 8") |
| ABF-20 | Flanged Aluminium Breather (same as FSB-60-HN) | 2-1/2" | BSPP (Female) | SS 100 Mesh | Yes | Optional (SG) | Optional (4", 6", 8") |
