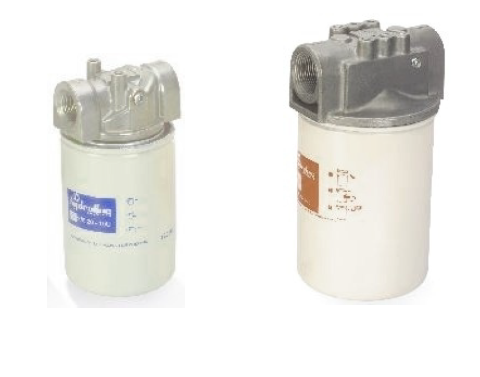

Hydroline IFR3 – Inline Spin-On Filter

Hydroline IFR3 – Inline Spin-On Filter

The Hydroline IFR3 is a compact inline spin-on filter sharing elements with the IFR2 but in a revised body suited to tight installation spaces. Five element sizes cover flows from 35 to 200 LPM, and the larger IF*3.10 head features six mounting holes for a more rigid installation.

Key Specifications

• Construction: Die cast aluminium head; disposable spin-on element
• Standard head sizes: IF*3.06 (3/4") and IF*3.10 (1-1/4") — additional sizes 1/2" (04) and 1" (08) available to order
• Max flow: 200 LPM (IF*3.10 with IFE-65 element)
• Max pressure: 10 bar | Test: 15 bar | Burst: 20 bar
• Bypass: 1 bar return (standard) | 0.2 bar suction
• Max temperature: 80°C
• Fluid: Mineral/petroleum based oils
• Port sizes — BSPP standard: 1/2" (04) | 3/4" (06) | 1" (08) | 1-1/4" (10)
• Port thread options: BSPP (standard) | NPT | UNF
• Post (element) thread: 1"-12 UN standard (06 head) | dual thread — 1-1/4" BSPP & 1-1/2"-16 UN (10 head)
• Mounting holes: 2 off M6 x 1.0 (06 head) | 6 off M8 x 1.25 (10 head)
• 5 element sizes: S/E-10 (35 LPM) | S/E-20 (70 LPM) | S/E-30 (100 LPM) | IFE-50 (150 LPM) | IFE-65 (200 LPM)
• Filtration grades: 10 µm / 25 µm nominal | 10 µm / 25 µm absolute | 125 µm mesh
• Clog indicator: optional visual (GR/GS) or electrical (ER/ES), ordered separately
• Weight: 0.80 kg (IF*3.06-SE10) to 2.50 kg (IF*3.10-IFE65)
