Kawasaki K3V112S Pump Parts

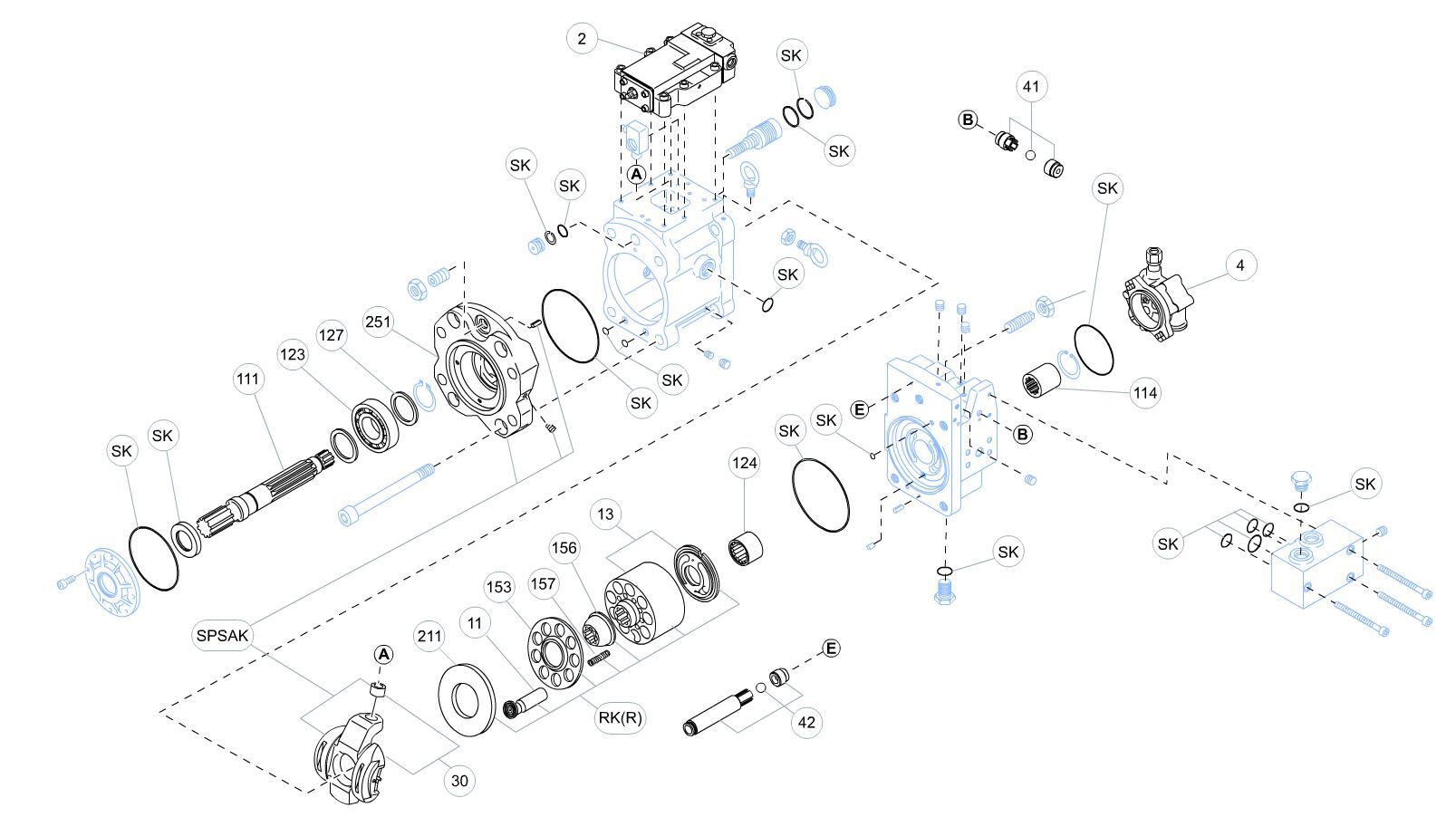

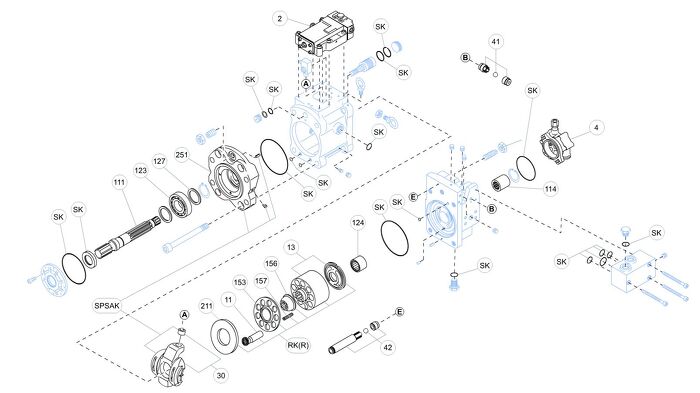

Refer to the illustration to identify required genuine part(s);
- SK – Seal Kit
- 2 – Regulator Parts / Seal Kit
- 4 – Pump, Gear
- 11 – Ass'y, Pistons
- 13 – Ass'y, Cylinder (Right or Left Hand Rotation)
- 30 – Ass'y, Swash Plate
- 41 – Valve, Check1 Sub
- 42 – Valve, Check2 Sub
- 111 – Shaft, Front Drive
- 123 – Bearing, Roller
- 124 – Bearing, Needle
- 127 – Spacer, Bearing
- 153 – Plate, Set
- 156 – Bush, Spherical
- 157 – Spring, Cylinder
- 211 – Plate, Shoe
- 251 – Support, Swash Plate
- A – Ass'y, Tilting Pin
- RK – Rotary Kit (Right or Left Hand Rotation)
Please enquire as to the part number(s) you require - we have it all on the shelf ready for you.
Genuine Kawasaki product - no after market copies here!
FPD are the exclusive NZ Distributor of Kawasaki (KPM) Mobile parts and equipment.
