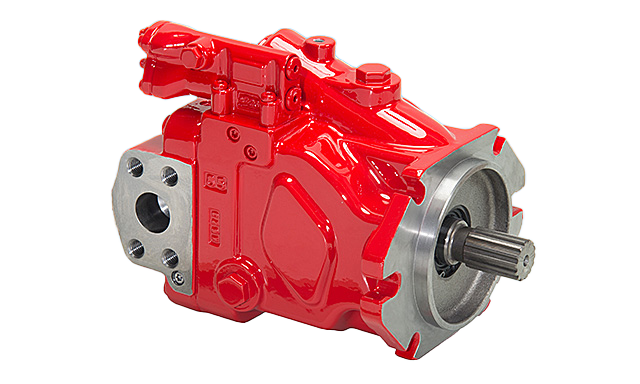

Kawasaki K3VLS Pump
Genuine KPM, Authorised NZ Support
As New Zealand's authorised distributor for Kawasaki (KPM) hydraulic components, FPD supplies and supports the K3VLS series — Kawasaki's compact, medium-duty pump developed specifically for machines running load-sensing and electronic displacement control systems. It's a purpose-built alternative to the larger K3V/K5V/K7V range where a lighter, more compact pump is the better fit for the application.
Why K3VLS
- Compact and lightweight design gives more flexibility in tight installation spaces than Kawasaki's larger pump frames
- High pump efficiency from Kawasaki's latest internal technology, without adding size or weight
- Responsive, stable control performance — well suited to machines that demand quick, predictable response from the hydraulic system
- Low noise operation for a more comfortable operating environment
- Full load-sensing control suite — load sensing, torque limiting, power shift and electronic displacement control options available to match your machine's system
Displacement range: 50–150cc, rated to 28 MPa (280 bar) continuous / 35 MPa (350 bar) peak pressure.
Common applications: wheel loaders, dozers, backhoe loaders, track loaders, cranes (crawler, rough terrain and truck-mounted), crushers, asphalt pavers, forklifts, telehandlers, manlifts and fire engines, plus a range of truck, tractor and agricultural equipment.
Get in touch and our team will confirm the right model and controls, or source genuine parts if you're rebuilding an existing unit.
| Pump Type | Displacement (cm3) | Rated Pressure (MPa) | Max Speed (min-1) | Weight (kg) |
| K3VLS50 | 50 | 28 | 3250 | 21 |
| K3VLS65 | 65 | 28 | 3000 | 25 |
| K3VLS85 | 85 | 28 | 3000 | 31 |
| K3VLS105 | 105 | 28 | 2640 | 37 |
| K3VLS150 | 150 | 28 | 2400 | 52 |
