Kawasaki Staffa HMB060 - HMB200 Motor Parts

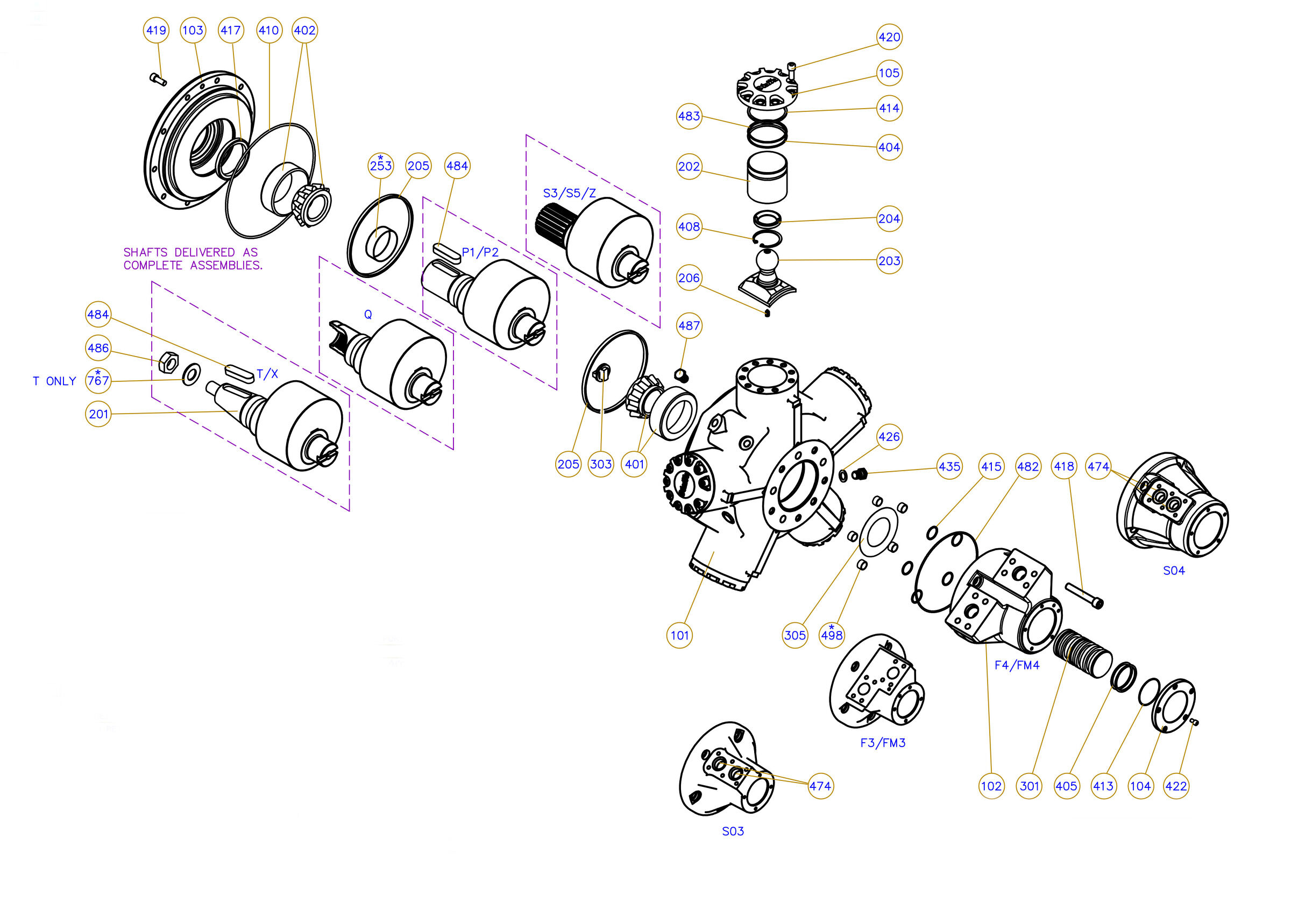

Refer to the illustration to identify required genuine part(s);
- 101 – Motorcase (Qty-1)
- 102 – Valve Housing (Qty-1)
- 103 – Front Cover (Qty-1)
- 104 – Valve End Cap (Qty-1)
- 105 – Cylinder Head (Qty-5)
- 201 – Crankshaft (Qty-1)
- 202 – Piston (Qty-5)
- 203 – Con-Rod (Qty-5)
- 204 – Piston Retaining Half Ring (Qty-10)
- 205 – Con-Rod Retaining Ring (Qty-2)
- 206 – Restrictor Screw (Qty-5)
- 253* – Shaft Sleeve (Qty-1)
- 301 – Valve Spool (Qty-1)
- 303 – Oldhams Coupling (Qty-1)
- 305 – Shim (Steel) (Qty-–)
- 401 – Rear Bearing (Qty-1)
- 402 – Front Bearing (Qty-1)
- 404 – Piston Seal Ring (Qty-5)
- 406 – Circlip (Retention-Internal) (Qty-5)
- 410 – O-Ring (Front Cover) (Qty-1)
- 413 – O-Ring (Valve End Cap) (Qty-1)
- 414 – O-Ring (Cylinder Head) (Qty-5)
- 417 – Shaft Seal (Qty-1)
- 419 – S.H.C.S. (Valve Hsg/W-Case) (Qty-5)
- 420 – S.H.C.S. (Front Cover) (Qty-5)
- 422 – S.H.C.S. (Cylinder End Cap) (Qty-5)
- 426 – S.H.C.S. (Valve End Cap) (Qty-4)
- 428 – Bonded Seal (Qty-2)
- 435 – Drain Plug (Qty-1)
- 474 – O-Ring (502 & 504 VLV. Reg. Ports) (Qty-2)
- 482 – O-Ring (Valve Housing Surround) (Qty-1)
- 483 – Piston Seal Backing Ring (Qty-5)
- 484 – Customer Key (Qty-1)
- 486 – Shaft Nut (Qty-1)
- 487 – Plastic Plug (Qty-1)
- 498* – Shaft Nut (Retaining/Long) (Qty-1)
- 767* – Keep Plate (Qty-1)
* - Where fitted
