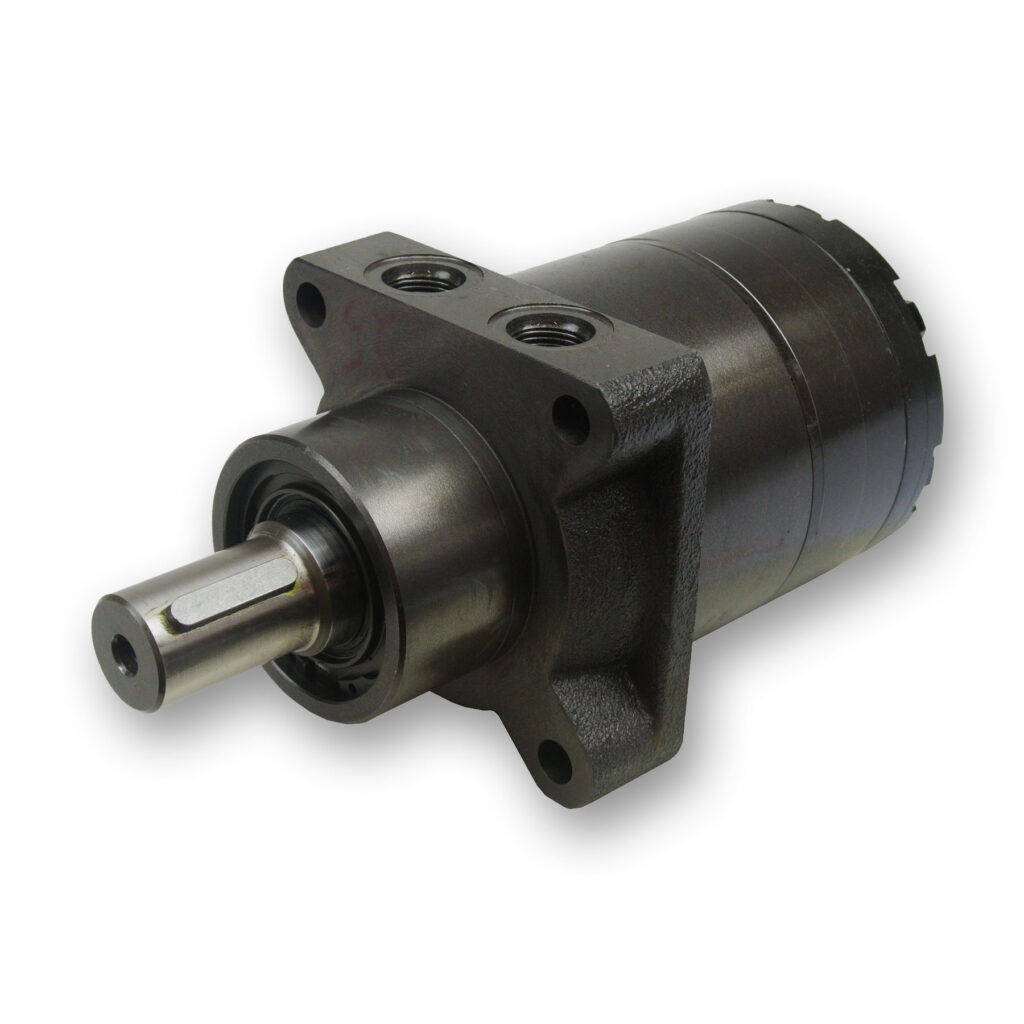

M+S Hydraulic HW orbital motor
HW Series heavy duty Geroler motor – manufactured in Europe by M+S Hydraulic.
Standard pricing option features:
- Shaft: 1.1/4″ straight keyed
- Mount: wheel 4-bolt
- Ports: 7/8″ UNF
- Case: 7/16″ UNF
Note: we supply more models than shown in the table below.
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| HWS 125 K4 | 126 | 357 | 45 | 205 | 210 | 350 | 14.5 |
| HWS 200 K4 | 201.3 | 373 | 75 | 205 | 210 | 550 | 15.5 |
| HWS 250 K4 | 252.0 | 298 | 75 | 205 | 210 | 690 | 16.0 |
| HWS 315 K4 | 314.9 | 238 | 75 | 205 | 210 | 850 | 16.5 |
| HWS 370 K4 | 369.2 | 203 | 75 | 205 | 210 | 960 | 17.0 |
| HWS 470 K4 | 470.6 | 159 | 75 | 150 | 210 | 920 | 18.3 |
| HWS 535 K4 | 535.0 | 140 | 75 | 130 | 210 | 900 | 19.0 |
| HWS 600 K4 | 598.8 | 125 | 75 | 115 | 210 | 910 | 20.1 |
