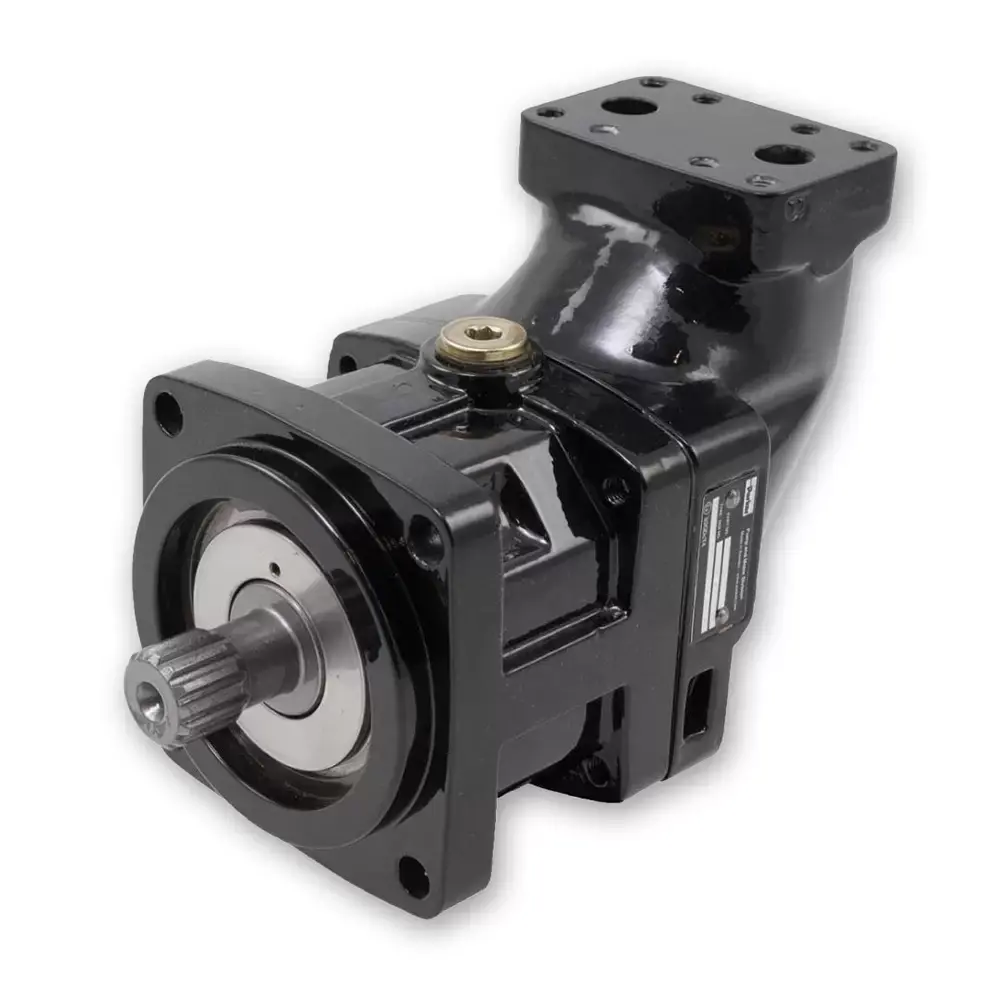

Parker F12 Bent Axis Piston Pump
The Parker F12 series is a heavy-duty bent axis, fixed displacement piston pump built for the toughest open and closed loop hydraulic circuits. Available across eleven frame sizes from 30 to 250 cc, the F12 combines a compact 40° bent-axis design with laminated piston rings and a unique timing gear set-up that synchronises shaft and cylinder barrel — giving it strong resistance to high G-forces and torsional vibration. The 7 or 9 piston design delivers high start-up torque and smooth running, while a simple, low parts-count construction keeps it reliable and serviceable in the field. Suited to fan drives, cranes, winches, and a wide range of mobile and industrial applications. Enquire with our team for stock availability and pricing on the frame size you need.
Key specifications
- Displacement range: 30.0–250 cm³/rev across F12-030 to F12-250 frame sizes
- Maximum intermittent operating pressure: up to 500 bar (frame-size dependent)
- Maximum continuous operating pressure: up to 450 bar (frame-size dependent)
- Self-priming pump speeds up to approximately 3,150 rpm (frame-size dependent), with higher motor operating speeds available
- Bent axis design with 40° shaft-to-cylinder-barrel angle for a compact, lightweight footprint
- Laminated piston rings for low internal leakage and thermal shock resistance
- Available in ISO, Cartridge, SAE, and CETOP mounting and port configurations
- Left and right hand rotation options on pump versions
- Operating temperature range approximately -40°C to 115°C (drain temperature)
