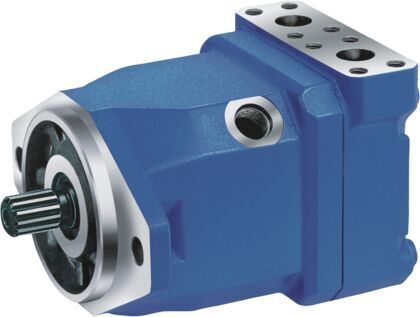

Rexroth A10FM Motor
The Rexroth A10FM is a versatile swashplate-design hydraulic motor engineered for medium-pressure applications. Designed for both mobile and industrial circuits, the A10FM is an industry favourite for auxiliary drives, cooling fans, and conveyor systems. If you need a motor that balances high-speed capability with a compact footprint, the A10FM is the proven solution.
Axial piston fixed motors convert hydrostatic energy into mechanical energy. The output torque increases with the pressure difference between the high and low-pressure. The output speed is proportional to the inlet flow and inversely proportional to the displacement of the hydraulic motor.
- Nominal Pressure: 280 bar (4000 psi)
- Maximum Pressure: 350 bar (5100 psi)
- Case Pressure: Maximum 2 bar (30 psi). Proper case drainage is essential to protect the shaft seal.
- Compact Inline Design: Fits into tight installation spaces where bent-axis motors won't.
- Optimized for Medium Pressure: High efficiency at 280 bar nominal pressure.
- Proven Durability: Based on the world-renowned A10 swashplate platform.
- High Speed Capability: Reaches speeds up to 5600 rpm (Size 10/11), perfect for high-velocity fan drives.
Installation Note: To ensure the longevity of your A10FM, always connect the case drain line directly to the reservoir. Before the first run, fill the motor housing through the drain port to prevent internal friction and heat damage.
