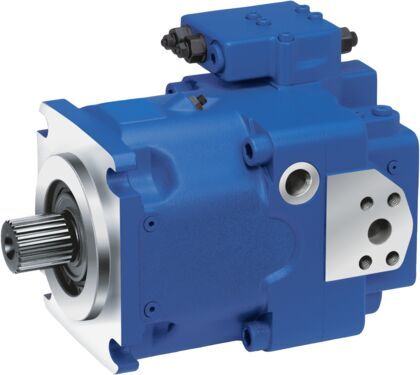

Rexroth A11V Pump
The A11VO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control. It is positioned as a "heavy-duty" upgrade to the A10V series, offering higher pressure ratings and the option for a built-in charge pump (impeller) for high-speed operation (A11VLO). It bridges the gap between the medium-pressure A10V and the heavy-duty A4VG, offering significantly higher power density and the ability to run at higher speeds thanks to its optional impeller.
- Nominal Pressure: 350 bar (5100 psi)
- Maximum Pressure: 400 bar (5800 psi)
- Peak Pressure: 420 bar (Series 40)
| Displacement (cm3) | Max Speed (rpm) | Max. Flow (l/min) | Max. Power (KW) | Weight (kg) |
| 42 | 3000 | 126 | 74 | 74 |
| 58.5 | 2700 | 158 | 92 | 40 |
| 74 | 2550 | 189 | 110 | 45 |
| 93.5 | 2350 | 220 | 128 | 53 |
| 130 | 2100 | 273 | 159 | 66 |
| 145 | 2200 | 319 | 186 | 76 |
| 193 | 2100 | 405 | 236 | 95 |
| 260 | 1800 | 468 | 273 | 125 |
