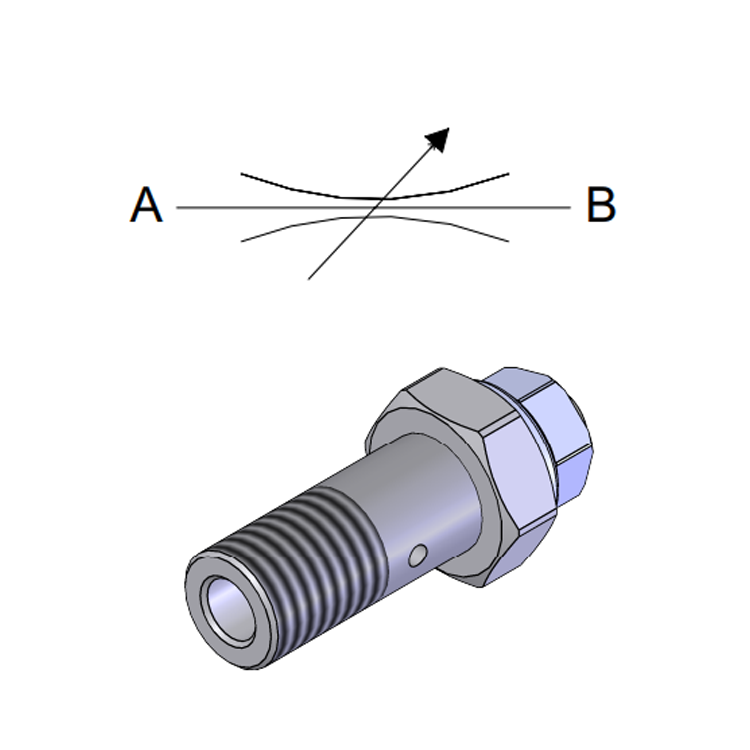

Screw Adjustable Bidirectional Throttle
Simple, no-frills bidirectional throttle valve adjusted via a hex-key screw. With a minimal footprint and low weight — as little as 50 g — it's well suited to low-flow pilot and control circuits where a compact, reliable restriction is needed in both directions.
Available in three port sizes with consistent 350 bar pressure ratings across the range.
Key Specifications
- Type: Screw adjustable bidirectional throttle
- Port sizes: 1/4", 3/8", 1/2" BSPP
- Max. pressure: 350 bar (all port sizes)
- Weight: 50 g (1/4") | 70 g (3/8") | 140 g (1/2")
- Seal options: NBR (standard) — Viton available on request
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
- Filtration standard: ISO 4406
| Thread | Max. Pressure (bar) |
| 1/4 BSPP | 350 |
| 3/8 BSPP | 350 |
| 1/2 BSPP | 350 |
