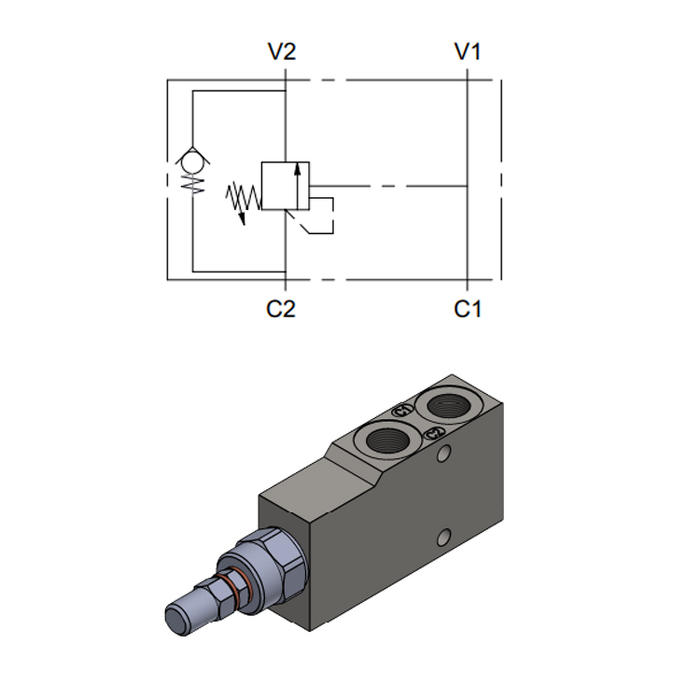

Single Effect Overcenter Valve, Small Series
Compact (small series) single-acting counterbalance valve — same rated pressure as the full-size LHV-1 but in a narrower 32 mm body. Designed for installations where envelope size matters without compromising on performance.
Key Specifications:
- Valve type: Single effect overcenter — small series
- Max operating pressure: 350 bar
- Port connections V & C: Female BSPP — 1/4" or 3/8"
- Max flow: 30 l/min (1/4"), 40 l/min (3/8")
- Standard pilot ratio: 4.25:1 (8:1 and 11:1 available on request)
- Setting range: 60–350 bar
- Standard setting: 300 bar
- Fluid temperature: −20 °C to +90 °C
- Ambient temperature: −20 °C to +50 °C
- Filtration standard: ISO 4406
- Standard seals: NBR 70 Shore A | Viton available on request
- Manifold material: Zinc plated steel
- Adjustment options: Steel cap (std) or tamper-proof cap
