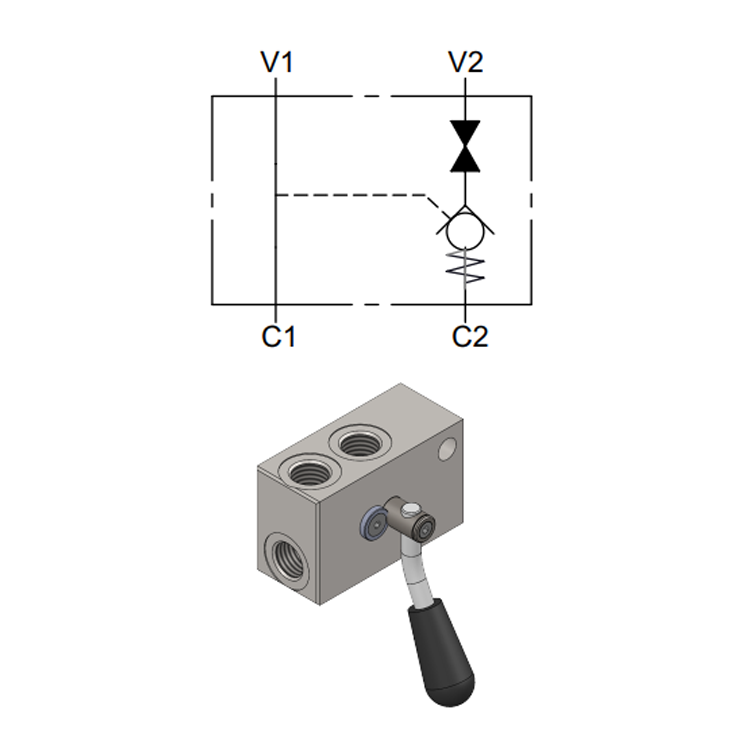

Single Pilot Operated Check Valve with Left Manual Shut-Off
Manual shut-off lever positioned on the left side of the manifold body. This allows circuit isolation from either side depending on installation orientation or operator preference.
Specifications are identical to the POC-1-RDX — 3/8" BSPP, 300 bar, 35 l/min, 5.1:1 pilot ratio — in a raw or anodised aluminium body.
Key Specifications
- Type: Single pilot operated check valve with left-hand manual shut-off
- Port size (V1-V2 / C1-C2): 3/8" BSPP
- Max. pressure: 300 bar
- Max. flow: 35 l/min
- Pilot ratio: 5.1:1
- Cracking pressure: 1 bar
- Seal options: NBR 70 Shore A (standard)
- Body material: Raw aluminium (standard) | Anodised aluminium on request
- Fluid temperature: -20°C to +90°C
| Thread V1-V2 | Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 3/8 BSPP | 3/8 BSPP | 300 | 35 | 5.1:1 |
