Stauff Threaded Tank top breathers

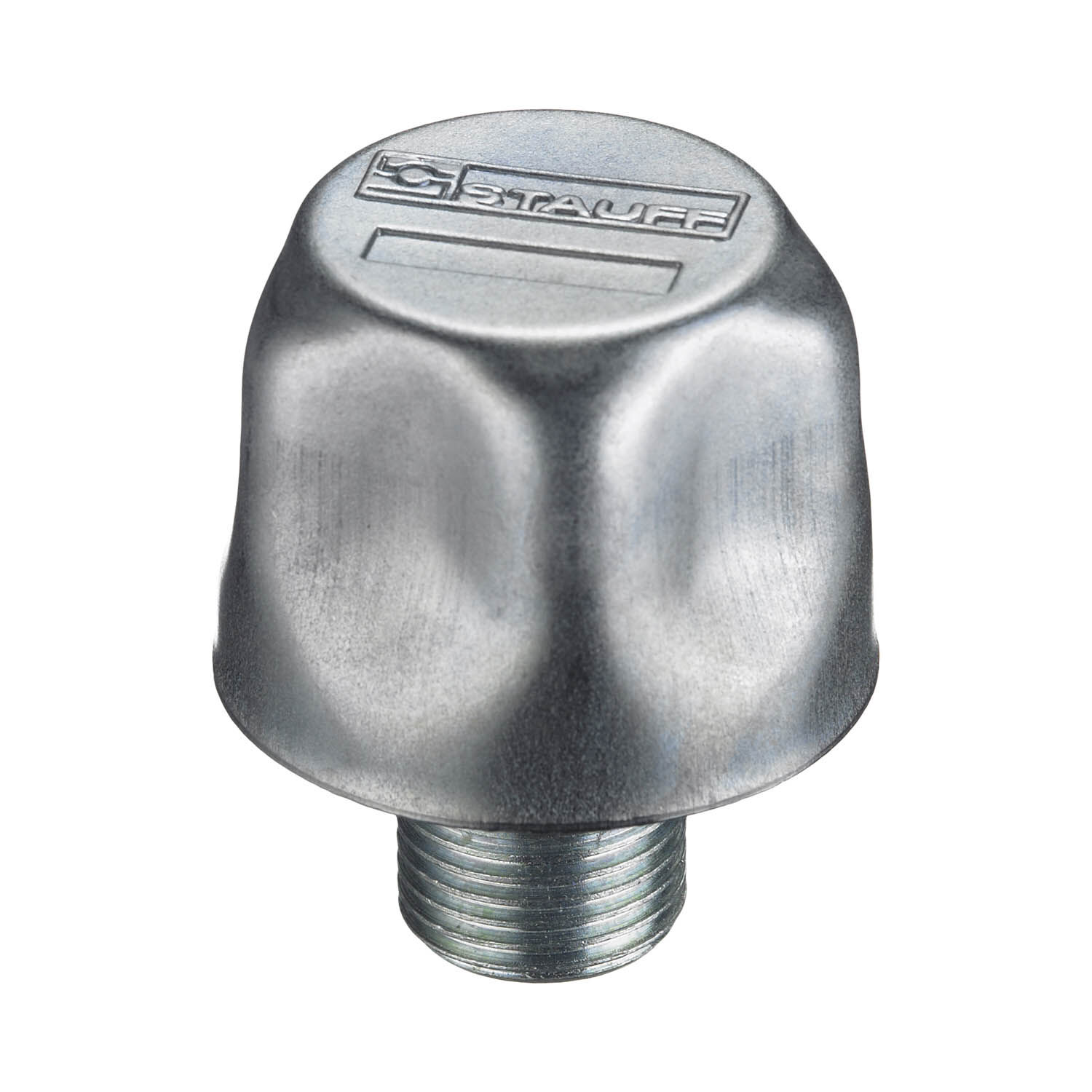

Filling filters and tank filler necks with breathers from the SMBT series made of metal/steel for mounting on hydraulic tanks and containers. Allows permanent venting while protecting against contamination entering the system. Cap diameter either 47 or 80 mm. Version with male thread BSP or NPT for screwing in. With high-quality STAUFF zinc/nickel coating. Options, accessories and spare parts such as pressurisation, filling screens, dipsticks, air filter elements, adaptors, adaptor sets.
| Stauff Item No. | Item Designation | Product Description |
| 1910000323 | SMBT-47-N-10-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 1/2"BSP |
| 1910000431 | SMBT-47-N-40-O-B04-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 40 µm Foam Thread: 1/4"BSP |
| 1910002564 | SMBT-47-N-40-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 40 µm Foam Thread: 1/2"BSP |
| 1910000432 | SMBT-47-S-10-O-B04-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 1/4"BSP |
| 1910000711 | SMBT-47-S-10-O-B06-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 3/8"BSP |
| 1910000750 | SMBT-47-S-10-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 1/2"BSP |
| 1910000837 | SMBT-47-S-10-O-B12-O | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 47mm 10 µm Foam Connection Thread: 3/4 BSP |
| 1910000824 | SMBT-47-S-10-O-B16-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 1"BSP |
| 1910021005 | SMBT-47-S-10-O-N06-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 10 µm Foam Thread: 3/8"NPT |
| 1910000680 | SMBT-47-S-40-O-B04-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 40 µm Foam Thread: 1/4"BSP |
| 1910001608 | SMBT-47-S-40-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 47mm 40 µm Foam Thread: 1/2"BSP |
| 1910002894 | SMBT-47C-S-10-O-B04-O | Screw-In Metal Filler Breather cap made of Steel, chromed 47mm 10 Micron Foam Connection Thread: 1/4 BSP |
| 1910002905 | SMBT-47C-S-10-O-B06-O | Screw-In Metal Filler Breather cap made of Steel, chromed 47mm 10 Micron Foam Connection Thread: 3/8 BSP |
| 1910002906 | SMBT-47C-S-10-O-B08-O | Screw-In Metal Filler Breather cap made of Steel, chromed 47mm 10 Micron Foam Connection Thread: 1/2 BSP |
| 1910002909 | SMBT-47C-S-10-O-B12-O | Screw-In Metal Filler Breather Cap 47mm, Steel Chrome Plated Micron Rating: 10 Foam w/o Pressurisation Connection: G3/4 w/o Dipstick |
| 1910002908 | SMBT-47C-S-10-O-B16-O | Screw-In Metal Filler Breather Cap 47mm, Steel Chrome Plated Micron Rating: 10 Foam w/o Pressurisation Connection: G1 w/o Dipstick |
| 1910002917 | SMBT-47C-S-10-O-N04-O | Screw-In Metal Filler Breather cap made of Steel, chromed 47mm 10 Micron Foam Connection Thread: 1/4 NPT |
| 1910003567 | SMBT-47C-S-10-O-N06-O | Screw-In Metal Filler Breather cap made of Steel, chromed 47mm 10 Micron Foam Connection Thread: 3/8 NPT |
| 1910001381 | SMBT-47E-S-10-O-B04-O | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 47mm 10 µm Foam Connection Thread: 1/4 BSP |
| 1910020547 | SMBT-47E-S-10-O-B06-O | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 47mm 10 µm Foam Connection Thread: 3/8 BSP |
| 1910002868 | SMBT-80-S-03-B0.35-B12-A | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 3 Micron Filter Paper Connection Thread: 3/4 BSP Pressurised at 0,35 Bar/5 PSI |
| 1910000958 | SMBT-80-S-03-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 3 µm Filter Paper Thread: 1/2"BSP |
| 1910001346 | SMBT-80-S-03-O-B12-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 3 µm Filter Paper Thread: 3/4"BSP |
| 1910001725 | SMBT-80-S-03-O-B16-O | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 3 µm Filter Paper Connection Thread: 1 BSP |
| 1910002200 | SMBT-80-S-10-B0.35-B08-O | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 10 µm Foam Connection Thread: 1/2 BSP Pressurised at 0,35 Bar/5 PSI |
| 1910000535 | SMBT-80-S-10-B0.35-B12-A | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 3/4"BSP Pressurised at 0,35 Bar/5 PSI |
| 1910000537 | SMBT-80-S-10-B0.35-N12-A | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 3/4"NPT Pressurised at 0,35 Bar/5 PSI |
| 1910003063 | SMBT-80-S-10-B0.7-B08-O | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 10 Micron Foam Connection Thread: 1/2 BSP Pressurised at 0,7 Bar/10 PSI |
| 1910000536 | SMBT-80-S-10-B0.7-B12-A | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 3/4"BSP Pressurised at 0,7 Bar/10 PSI |
| 1910001609 | SMBT-80-S-10-B0.7-B16-A | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 10 µm Foam Connection Thread: 1 BSP Pressurised at 0,7 Bar/10 PSI |
| 1910000709 | SMBT-80-S-10-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 1/2"BSP |
| 6100211535 | SMBT-80-S-10-O-B12-A | Screw-In Metal Filler Breather Cap 80mm, Steel Zinc/Nickel Pl Micron Rating: 10 Foam w/o Pressurisation Connection: G3/4 w/ Dipstick Adaptor |
| 1910000429 | SMBT-80-S-10-O-B12-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 3/4"BSP |
| 1910002145 | SMBT-80-S-10-O-B16-D300 | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 10 µm Foam Connection Thread: 1 BSP |
| 1910000710 | SMBT-80-S-10-O-B16-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 1"BSP |
| 1910002059 | SMBT-80-S-10-O-N12-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Thread: 3/4"NPT |
| 1910001017 | SMBT-80-S-10-O-N16-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 10 µm Foam Connection Thread: 1 NPT |
| 1910000549 | SMBT-80-S-40-B0.35-B12-A | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 40 µm Foam Thread: 3/4"BSP Pressurised at 0,35 Bar/5 PSI |
| 1910000550 | SMBT-80-S-40-B0.7-B12-A | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 40 µm Foam Thread: 3/4"BSP Pressurised at 0,7 Bar/10 PSI |
| 1910000892 | SMBT-80-S-40-O-B08-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 40 µm Foam Thread: 1/2"BSP |
| 1910000428 | SMBT-80-S-40-O-B12-O | Screw-In Metal Filler Breather Cap made of Steel, z/n-plated 80mm 40 µm Foam Thread: 3/4"BSP |
| 1910001997 | SMBT-80-S-40-O-B16-O | Screw-In Metal Filler Breather cap made of Steel, z/n-plated 80mm 40 Micron Foam Connection Thread: 1 BSP |
| 1910002986 | SMBT-80C-S-03-O-B08-O | Screw-In Metal Filler Breather Cap 80mm, Steel Chrome Plated Micron Rating: 3 Filter Paper w/o Pressurisation Connection: G1/2 w/o Dipstick |
| 1910002914 | SMBT-80C-S-03-O-B12-O | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 3 Micron Filter Paper Connection Thread: 3/4 BSP |
| 1910002985 | SMBT-80C-S-03-O-N12-O | Screw-In Metal Filler Breather Cap 80mm, Steel Chrome Plated Micron Rating: 3 Filter Paper w/o Pressurisation Connection: 3/4 NPT w/o Dipstick |
| 1910002899 | SMBT-80C-S-10-B0.35-B12-A | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 3/4 BSP Pressurised at 0,35 Bar/5 PSI |
| 1910002900 | SMBT-80C-S-10-B0.7-B12-A | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 3/4 BSP Pressurised at 0,7 Bar/10 PSI |
| 1910002901 | SMBT-80C-S-10-B0.7-N12-A | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 3/4 NPT Pressurised at 0,7 Bar/10 PSI |
| 1910002903 | SMBT-80C-S-10-O-B08-O | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 1/2 BSP |
| 1910002893 | SMBT-80C-S-10-O-B12-O | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 3/4 BSP |
| 1910002904 | SMBT-80C-S-10-O-B16-O | Screw-In Metal Filler Breather cap made of Steel, chromed 80mm 10 Micron Foam Connection Thread: 1 BSP |
| 1910003573 | SMBT-80C-S-10-O-N12-O | |
| 1910000745 | SMBT-80E-S-10-B0.35-B12-A | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 80mm 10 µm Foam Connection Thread: 3/4 BSP Pressurised at 0,35 Bar/5 PSI |
| 1910001116 | SMBT-80E-S-10-B0.7-B12-A | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 80mm 10 µm Foam Connection Thread: 3/4 BSP Pressurised at 0,7 Bar/10 PSI |
| 1910001610 | SMBT-80E-S-10-O-B08-O | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 80mm 10 µm Foam Thread: 1/2"BSP |
| 1910001333 | SMBT-80E-S-10-O-B16-O | Screw-In Metal Filler Breather cap made of Steel,epoxy-coated 80mm 10 µm Foam Connection Thread: 1 BSP |
