Stauff Visual/Electrical Level Gauges

  • Stauff Visual/Electrical Level Gauges — hydraulic test and measurement equipment for pressure, temperature, and flow diagnostics in mobile and industrial systems, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — genuine Stauff diagnostic instruments in stock for hydraulic technicians across New Zealand
  • Stauff Visual/Electrical Level Gauges — hydraulic test and measurement equipment for pressure, temperature, and flow diagnostics in mobile and industrial systems, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — genuine Stauff diagnostic instruments in stock for hydraulic technicians across New Zealand

Technical Data

Accessories Specifications (19 Mb)

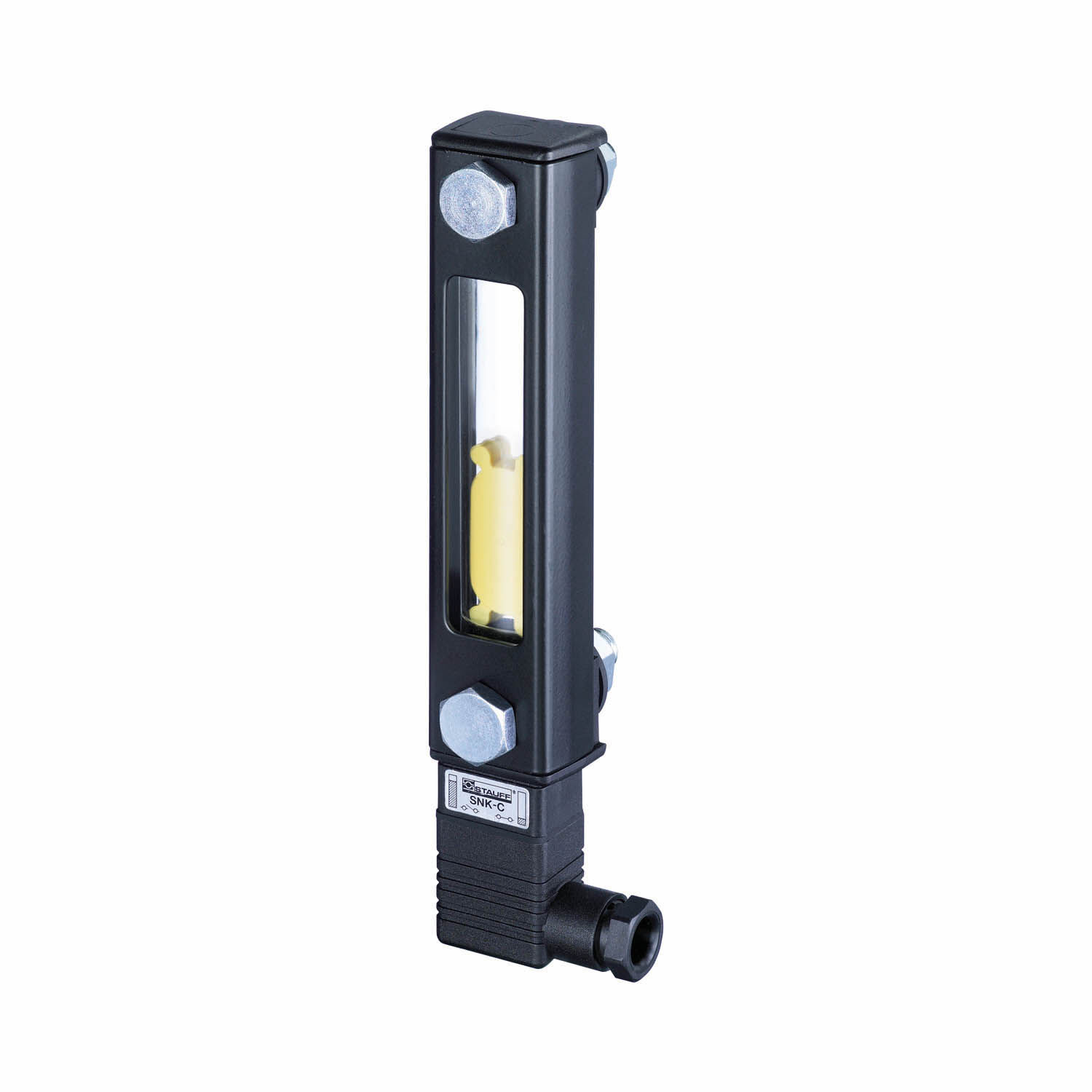

Stauff Visual/Electrical Level Gauges

STAUFF level gauges type SNK in the standard version and different nominal sizes for optical/electrical fill level monitoring in hydraulic tanks with a maximum preload pressure of 2 bar. With integrated switching contact. The switch is activated when the magnetic float sinks below the switching level (~60 mm above the lower hollow bolt). For attaching to the outer side wall of the hydraulic tank.

Enquire Now

Stauff Item No.Item DescriptorProduct Description
SNK-127-V-C-O-101910000052Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M10 without Thermometer
SNK-127-V-C-O-121910000040Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer
SNK-127-V-C-O-12-N1910000266Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 without Thermometer
SNK-127-V-C-O-12-O-601910000333Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-127-V-C-O-12-O-701910000313Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 70°C
SNK-127-V-C-O-12-O-801910001728Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 80°C
SNK-127-V-C-T1C-121910000044Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-127-V-C-T1C-12-O-601910001815Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe Contact Switches at 60°C
SNK-127-V-C-T1C-12-O-701910002198Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe Contact Switches at 70°C
SNK-127-V-C-T2C-121910000048Level Gauge SNK Type Size: 127 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 300mm Probe
SNK-127-V-O-O-101910000054Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M10 without Thermometer
SNK-127-V-O-O-121910000042Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-127-V-O-O-12-O-601910001156Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-127-V-O-O-12-O-701910000942Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 70°C
SNK-127-V-O-O-12-O-801910001650Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 80°C
SNK-127-V-O-T1C-121910000046Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-127-V-O-T1C-12-4900011910000721Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 Dial Thermometer - 200mm Probe
SNK-127-V-O-T1C-12-O-601910001409Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe Contact Switches at 60°C
SNK-127-V-O-T1C-12-O-701910000947Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe Contact Switches at 70°C
SNK-127-V-O-T2C-121910000050Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 300mm Probe
SNK-127-V-OD-O-121910002471Level Gauge SNK Type Size: 127 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-176-V-C-O-101910000591Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M10 without Thermometer
SNK-176-V-C-O-121910000593Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer
SNK-176-V-C-O-12-O-601910001014Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-176-V-C-O-12-O-801910001810Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 80°C
SNK-176-V-C-T1C-121910000598Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-176-V-C-T2C-121910000602Level Gauge SNK Type Size: 176 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 300mm Probe
SNK-176-V-O-O-101910000595Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M10 without Thermometer
SNK-176-V-O-O-121910000331Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-176-V-O-O-12-O-601910000936Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-176-V-O-O-12-O-701910001139Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 70°C
SNK-176-V-O-O-12-O-801910001716Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 80°C
SNK-176-V-O-T1C-121910000600Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-176-V-O-T2C-121910000604Level Gauge SNK Type Size: 176 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 300mm Probe
SNK-254-V-C-O-101910000068Level Gauge SNK Type Size: 254 Make Contact (n/o) Banjo Bolt: M10 without Thermometer
SNK-254-V-C-O-121910000056Level Gauge SNK Type Size: 254 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer
SNK-254-V-C-O-12-O-601910000869Level Gauge SNK Type Size: 254 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-254-V-C-O-12-O-701910000314Level Gauge SNK Type Size: 254 Make Contact (n/o) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 70°C
SNK-254-V-C-T1C-121910000060Level Gauge SNK Type Size: 254 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-254-V-O-O-101910000070Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M10 without Thermometer
SNK-254-V-O-O-121910000058Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-254-V-O-O-12-O-601910000643Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 60°C
SNK-254-V-O-O-12-O-701910001022Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 70°C
SNK-254-V-O-O-12-O-801910001184Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer Contact Switches at 80°C
SNK-254-V-O-T1C-121910000062Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-254-V-O-T2C-121910000066Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 300mm Probe
SNK-254-V-OD-O-121910002970Level Gauge SNK Type Size: 254 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-305-V-C-T1C-121910003377Level Gauge SNK Type Size: 305 Make Contact (n/o) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-305-V-O-O-121910020003Level Gauge SNK Type Size: 305 Break Contact (n/c) Banjo Bolt: M12 (Standard) without Thermometer
SNK-305-V-O-T1C-121910003675Level Gauge SNK Type Size: 305 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
SNK-305-V-O-T1CF-121910020004Level Gauge SNK Type Size: 305 Break Contact (n/c) Banjo Bolt: M12 (Standard) Dial Thermometer - 200mm Probe
