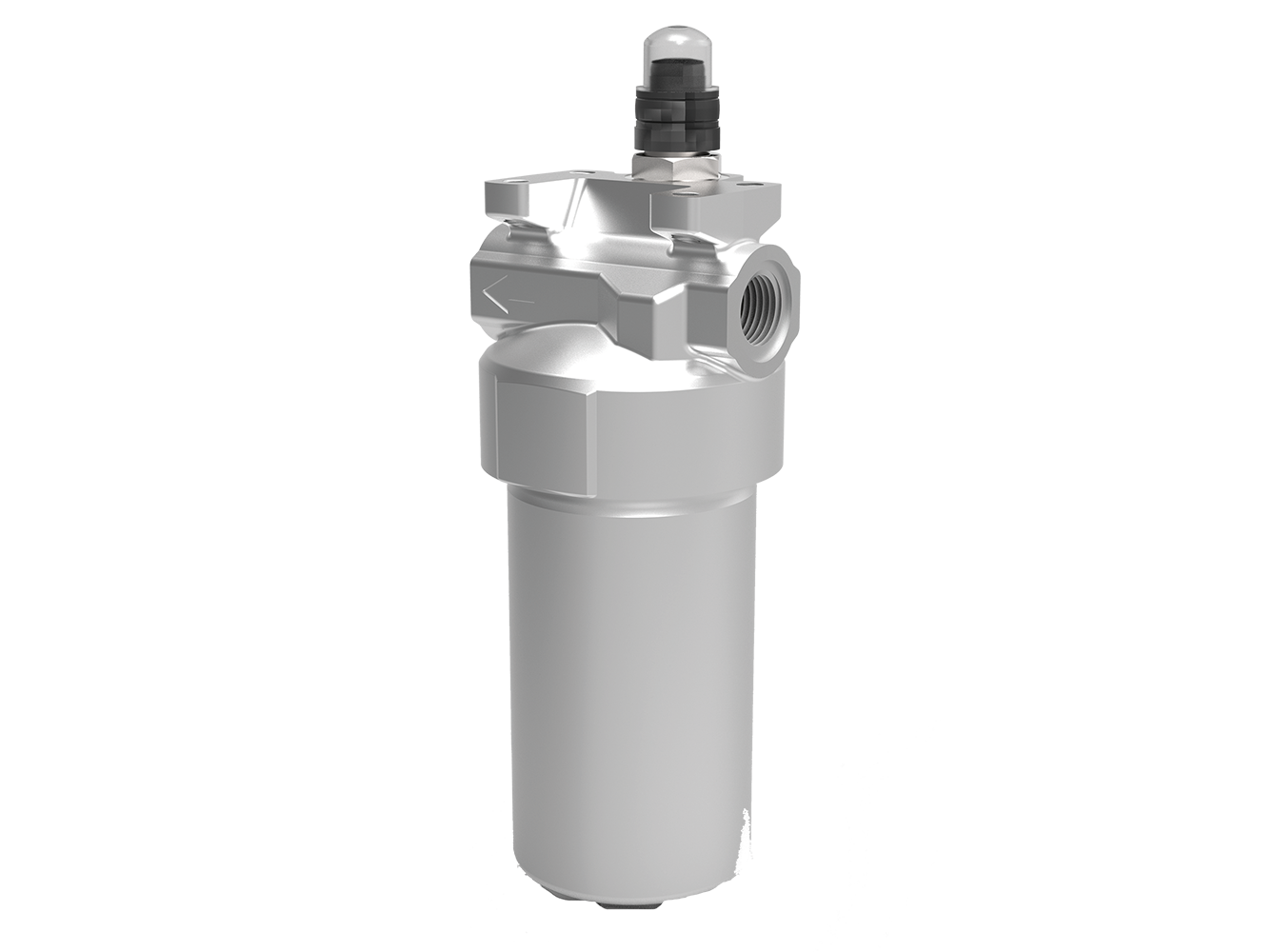

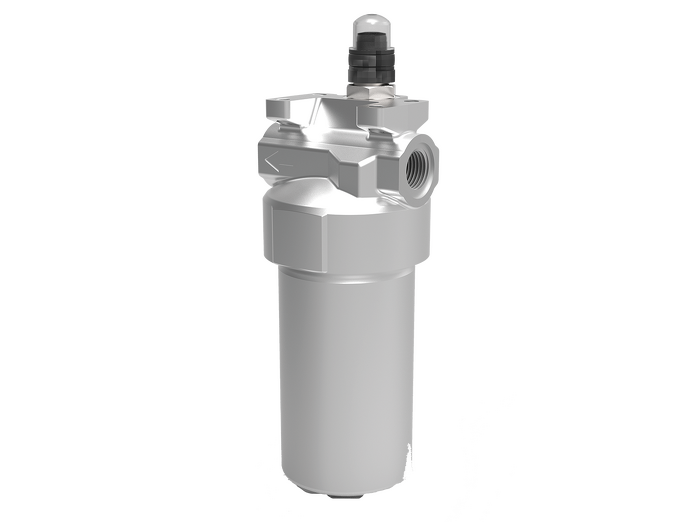

Argo-Hytos D 112 Pressure Filter (High Performance)
The Argo-Hytos D 112 offers mid-range flow capacity within the 100 bar D-series, rated to 130 l/min nominal flow through G1 / -16 SAE connections. It provides full-flow filtration for hydraulic and lubrication pressure circuits where both flow capacity and high oil cleanliness are required.
Star-pleated EXAPOR®MAX 3 microfibre media delivers a high filtration surface, low differential pressure, and reliable cold-start bypass protection. Clogging indicators can be integrated or fitted as retrofit accessories.
Key Specifications:
- Nominal flow rate: 130 l/min (34.3 GPM)
- Max. operating pressure: 100 bar (1450 PSI)
- Connection: G1 / -16 SAE
- Filter media: EXAPOR®MAX 3 inorganic multi-layer microfibre
- Housing material: Aluminium alloy
- Filter fineness: 5–16 µm(c) (β-values to ISO 16889)
- Temperature range: -30°C to +100°C
- Compatible fluids: Mineral oil and biodegradable fluids (HEES, HETG)
- Mounting position: Preferably vertical, filter head on top
| Type | Q nom. l/min (GPM) | P max. bar (PSI) | Connection |
| D 112 (High Performance) | 130 (34.3) | 100 (1450) | G1 (-16 SAE) |
