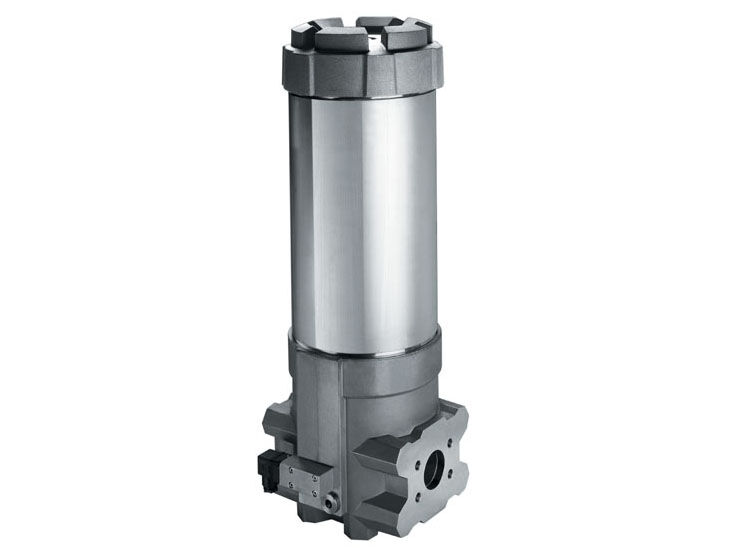

Argo-Hytos FNL 1000 Low-Pressure In-Line Filter (High Performance)
The Argo-Hytos FNL 1000 is a large-capacity low-pressure in-line filter for hydraulic and lubrication pressure circuits operating at up to 40 bar. With a nominal flow of 555 l/min, it's built for high-volume systems where maintaining oil cleanliness is critical to uptime.
Star-shaped pleated EXAPOR®MAX 3 filter media delivers a large surface area, low pressure drop, and high dirt-holding capacity — extending service intervals and minimising maintenance costs. Clogging indicators (optical or electrical) are available to take the guesswork out of servicing.
Key Specifications:
- Nominal flow rate: 555 l/min (146.6 GPM)
- Max. operating pressure: 40 bar (580 PSI)
- Connection: SAE 2
- Filter media: EXAPOR®MAX 3 inorganic multi-layer microfibre
- Housing material: Aluminium alloy
- Filter fineness: 5–10 µm(c) (β-values to ISO 16889)
- Temperature range: -30°C to +100°C
- Compatible fluids: Mineral oil and biodegradable fluids (HEES, HETG)
- Mounting position: Preferably vertical, filter head at bottom
| Type | Q nom. l/min (GPM) | P max. bar (PSI) | Connection |
| FNL 1000 (High Performance) | 555 (146.6) | 40 (580) | SAE 2 |
