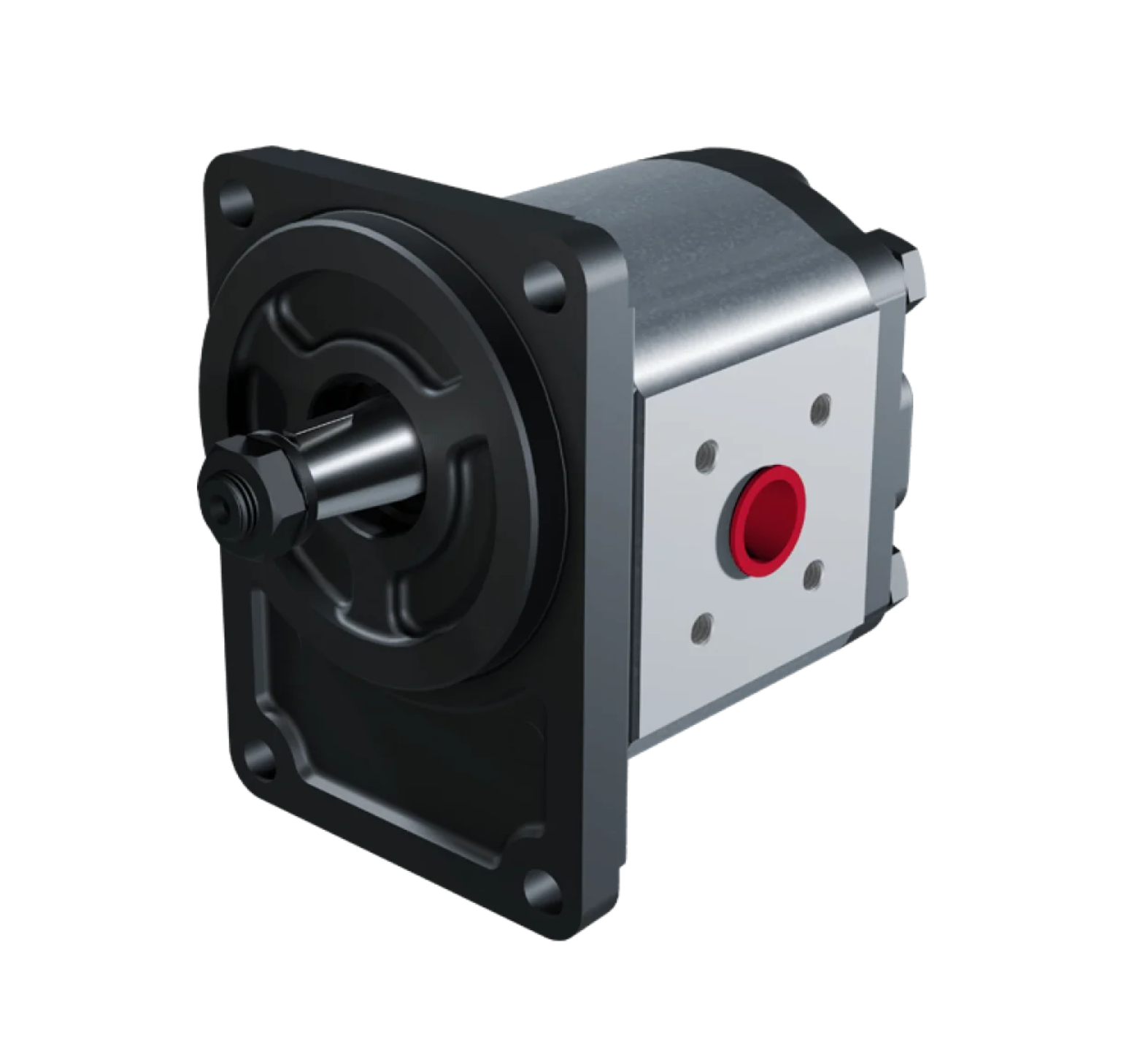

Blue Ascend Aluminium Body Gear Pump – Group 25
Model: AP25
Bridging the gap between Group 20 and Group 30, the AP25 covers a displacement range of 20.3 to 44.7 cc/rev with up to 250 bar at lower displacements. A good fit for medium-duty mobile and industrial applications where Group 20 runs out of capacity and Group 30 is more than required.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 20.3 – 44.7 cc/rev
- Maximum pressure: up to 250 bar (varies by displacement)
- Maximum speed: up to 3,000 rpm (varies by displacement)
- Minimum speed: 400 – 500 rpm
- Body: Aluminium
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| AP25.200 | 20.3 | 250 | 3000 | 500 |
| AP25.230 | 23.3 | 250 | 3000 | 500 |
| AP25.250 | 25.3 | 250 | 3000 | 500 |
| AP25.270 | 27.4 | 250 | 3000 | 500 |
| AP25.300 | 30.1 | 250 | 3000 | 500 |
| AP25.320 | 32.5 | 230 | 3000 | 500 |
| AP25.350 | 35.3 | 220 | 3000 | 500 |
| AP25.380 | 38.3 | 200 | 2750 | 500 |
| AP25.400 | 40.6 | 180 | 2500 | 400 |
| AP25.440 | 44.7 | 170 | 2500 | 400 |
