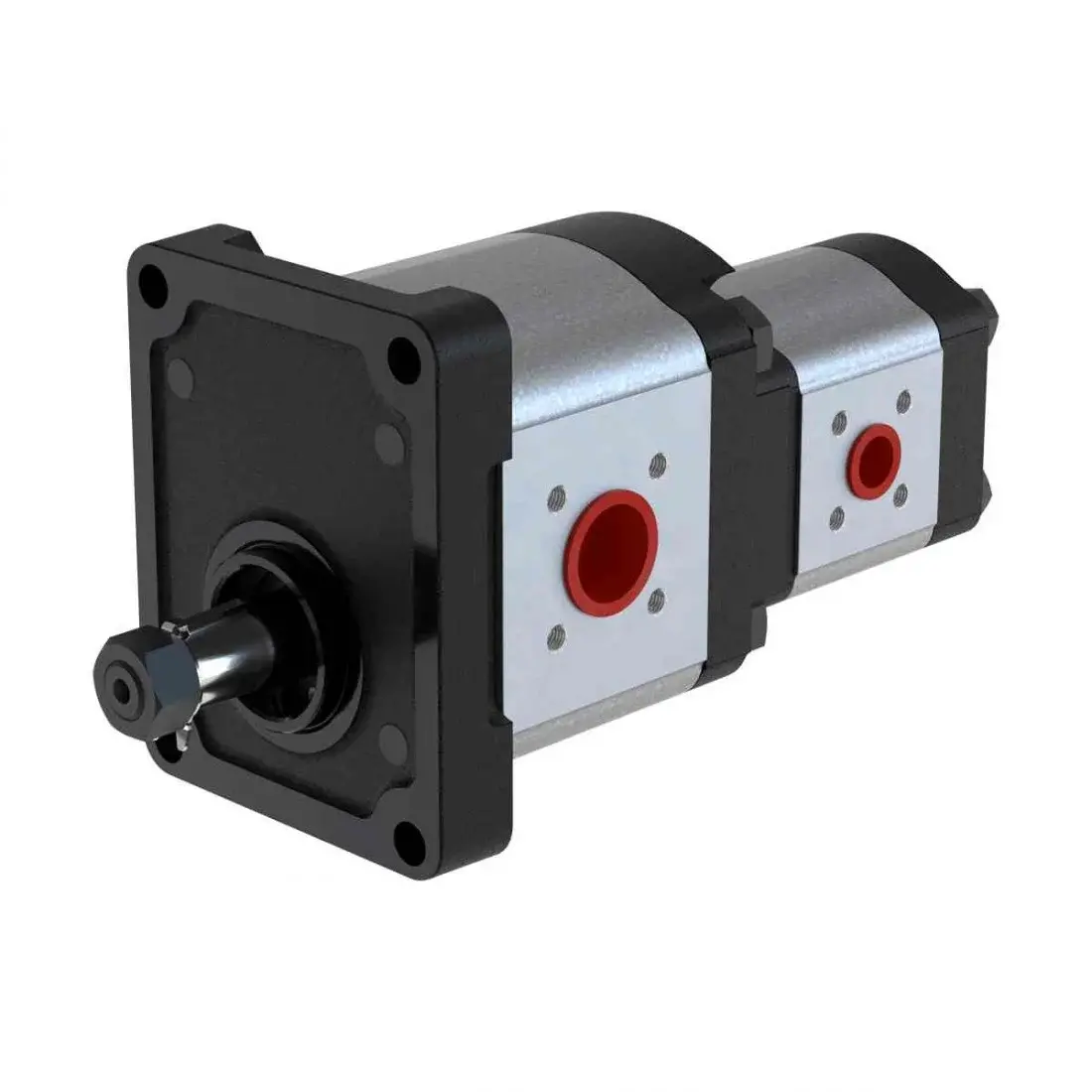

Blue Ascend Aluminium Body Tandem Pump – Group 30/20
Model: AP30 / AP20
A high-capacity two-pump tandem pairing a Group 30 primary with a Group 20 secondary. Provides two substantial flow outputs from a single shaft drive — well suited to large mobile plant, loader cranes, and industrial machinery with multiple high-demand circuits.
Key Specifications:
- Gear type: Normal gear
- Primary displacement (Group 30): 17.0 – 100.0 cc/rev
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,000 rpm
- Body: Aluminium
- Note: Compartments connected — single fluid system
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Notes |
| AP30.190/AP20.*** | 19,0 | 230 | 3000 | 500 |
| AP30.220/AP20.*** | 22,0 | 230 | 3000 | 500 |
| AP30.250/AP20.*** | 25,0 | 230 | 3000 | 500 |
| AP30.280/AP20.*** | 28,0 | 230 | 3000 | 500 |
| AP30.320/AP20.*** | 32,0 | 230 | 2750 | 500 |
| AP30.350/AP20.*** | 35,0 | 210 | 2750 | 500 |
| AP30.380/AP20.*** | 38,0 | 210 | 2750 | 500 |
| AP30.420/AP20.*** | 42,0 | 210 | 2750 | 500 |
| AP30.450/AP20.*** | 45,0 | 210 | 2500 | 500 |
| AP30.510/AP20.*** | 51,0 | 200 | 2250 | 500 |
| AP30.560/AP20.*** | 56,0 | 180 | 2000 | 500 |
| AP30.610/AP20.*** | 61,0 | 180 | 2500 | 400 |
| AP30.730/AP20.*** | 73,0 | 170 | 2500 | 400 |
| AP30.820/AP20.*** | 82,0 | 160 | 2000 | 400 |
| AP30.900/AP20.*** | 90,0 | 150 | 2000 | 400 |
| AP30.1000/AP20.*** | 100,0 | 140 | 2000 | 400 |
