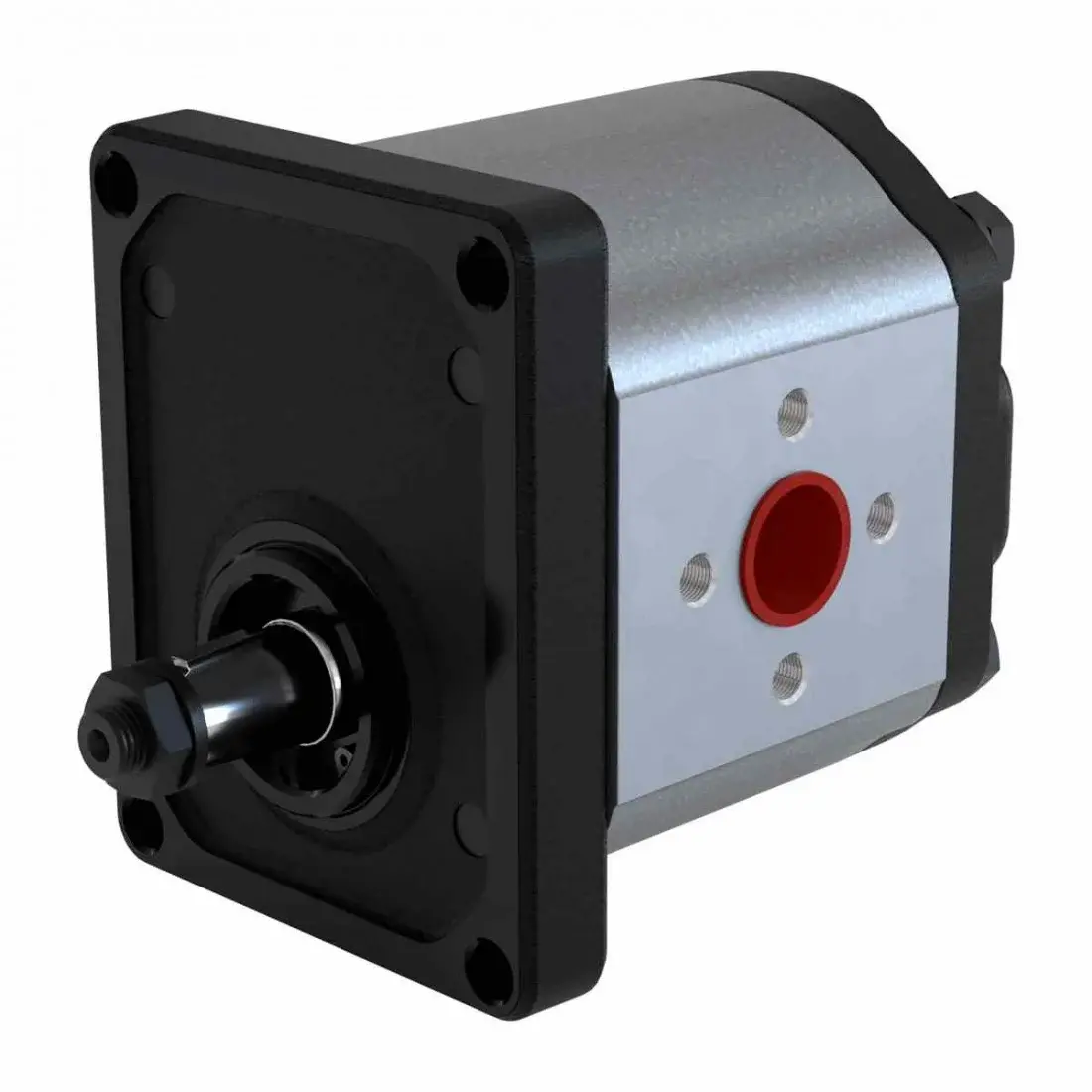

Blue Ascend Aluminium Body Gear Pump - Group 30

Blue Ascend Aluminium Body Gear Pump - Group 30

When your circuit needs higher displacement and greater flow without stepping up to a cast-iron unit, the Blue Ascend AP30 delivers. An aluminium body keeps weight in check, while a broad displacement range and extensive mounting, shaft and port options let you spec it precisely to your machine — and we hold the brand in stock.

Why the AP30

• Aluminium body — strong flow output without cast-iron weight
• Single or tandem configurations for multi-circuit builds
• Bi-rotational: counter-clockwise, clockwise or reversible
• Larger Group 30 displacement range for higher-demand circuits
• NBR or Viton seals to match your fluid and operating temperature

Key specifications

• Displacement range: 17.0 – 100.0 cm³/rev
• Max pressure: up to 250 bar (tapering on larger displacements — e.g. 140 bar at 100.0 cm³/rev)
• Max speed: up to 3,000 rev/min (lower on higher displacements, down to 1,500 rev/min)
• Outboard bearing option for higher drive-load applications

Configure to fit

• Front covers: square flange, SAE A/B, 2-bolt and 4-bolt centring, 3-bolt UNI
• Shafts: tapered key, parallel, SAE splined, and DIN 5463 options
• Ports: rectangular, diamond, SAE metric and UNC square flange, BSP, and SAE UNF O-ring
• Rear cover options including relief valves, flow divider, check, load-sensing and pressure-compensated flow control

Typical applications

Larger-displacement aluminium gear pumps like the AP30 suit higher-flow hydraulic supply — tractor and implement circuits, tipping and loader gear, power packs, log splitters, and general flow generation across agriculture, construction, materials handling, forestry and transport.

Source it from FPD

We stock Blue Ascend hydraulics and know how to spec them. Give us your displacement, rotation, mounting and port requirements — and whether you need a single or tandem build — and we'll confirm the right AP30 for your machine, backed by nearly 40 years of NZ hydraulic expertise.

Get a price and availability — call (07) 849 5771 or request a quote today.
