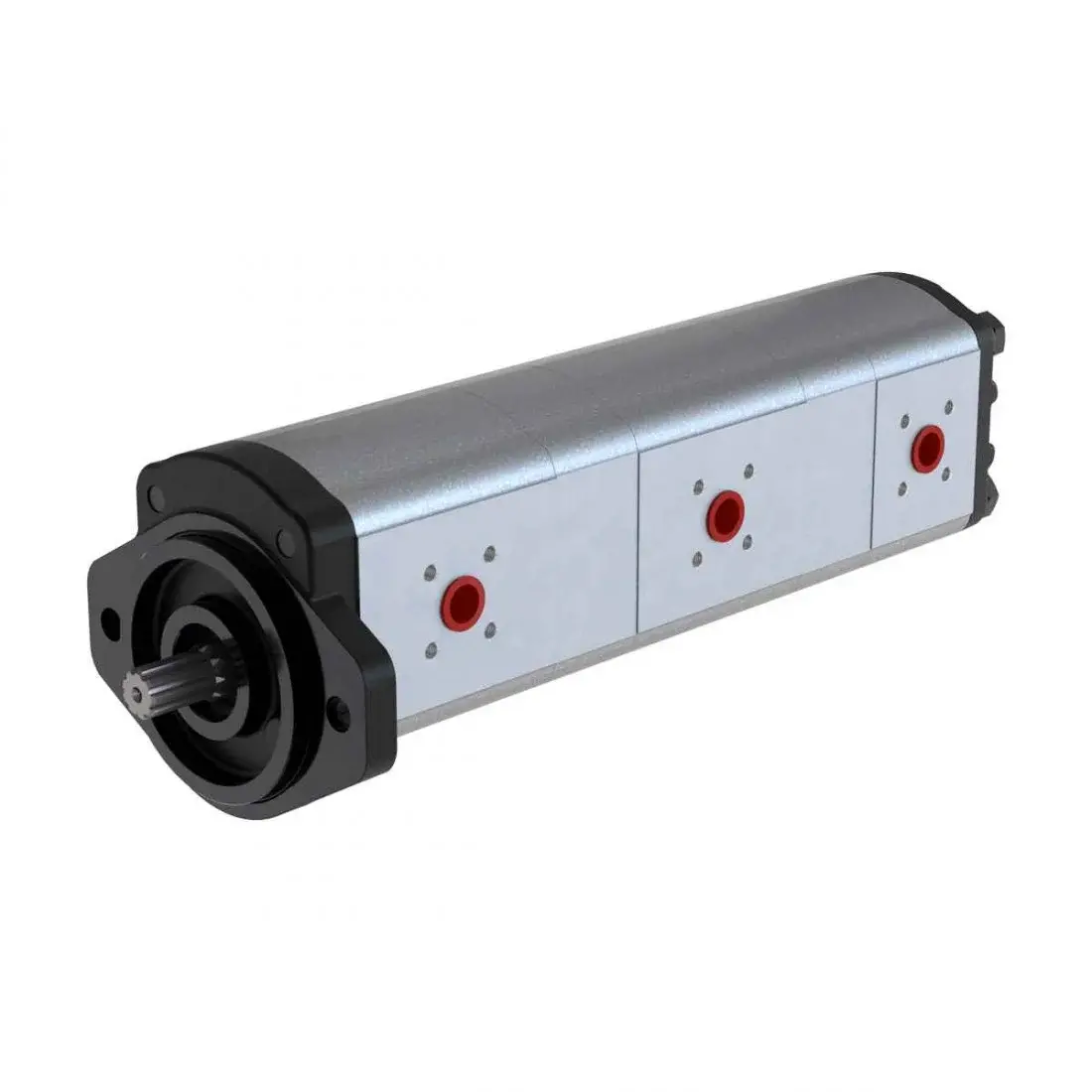

Blue Ascend Aluminium Body Tandem Pump – Group 20/20/20
Model: AP20 / AP20 / AP20
Three Group 20 pump sections combined on a single shaft. Provides three independent flow outputs within a shared oil system. Used in demanding mobile applications where triple-pump feeding is required from one drive point.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 3.9 – 40.0 cc/rev per section
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,500 rpm
- Body: Aluminium
- Note: Compartments connected — single fluid system
