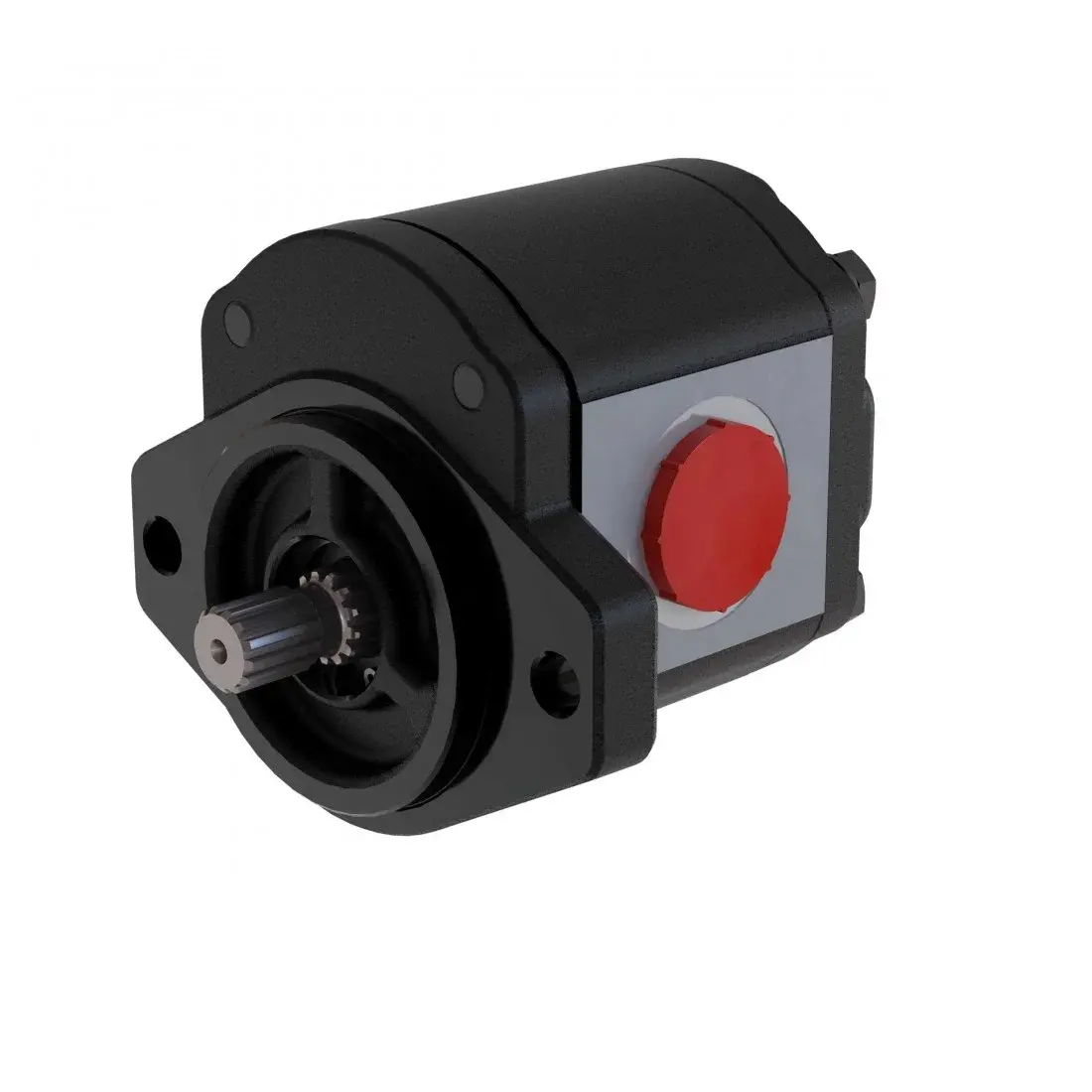

Blue Ascend Cast Iron Body Gear Pump - Group 30 (DKP30)
The Blue Ascend DKP30 is a high-capacity cast iron gear pump designed for applications requiring greater flow volume without sacrificing pressure capability. With 15 displacement options spanning 17.0 to 100.0 cc/rev, the Group 30 suits medium-to-large hydraulic systems in mobile and stationary plant. Spheroidal cast iron construction handles the cyclic loading and pressure spikes common in heavy equipment.
Key Specifications:
- Displacement range: 17.0 – 100.0 cc/rev
- Maximum pressure: up to 280 bar (smaller displacements); 180 bar at largest
- Maximum speed: up to 3,000 rpm
- Minimum speed: 500 rpm
- Body material: Spheroidal cast iron
- Gear type: Normal gear
| Pump Type | Displacement (cc/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| DKP30.170 | 17.0 | 280 | 3000 | 500 |
| DKP30.220 | 22.0 | 280 | 3000 | 500 |
| DKP30.270 | 27.0 | 280 | 3000 | 500 |
| DKP30.320 | 32.0 | 260 | 3000 | 500 |
| DKP30.340 | 34.0 | 260 | 3000 | 500 |
| DKP30.380 | 38.0 | 260 | 3000 | 500 |
| DKP30.430 | 43.0 | 260 | 3000 | 500 |
| DKP30.470 | 47.0 | 250 | 2500 | 500 |
| DKP30.510 | 51.0 | 240 | 2500 | 500 |
| DKP30.560 | 56.0 | 230 | 2500 | 500 |
| DKP30.610 | 61.0 | 220 | 2500 | 500 |
| DKP30.730 | 73.0 | 200 | 2500 | 500 |
| DKP30.820 | 82.0 | 190 | 2000 | 500 |
| DKP30.900 | 90.0 | 180 | 2000 | 500 |
| DKP30.1000 | 100.0 | 180 | 2000 | 500 |
