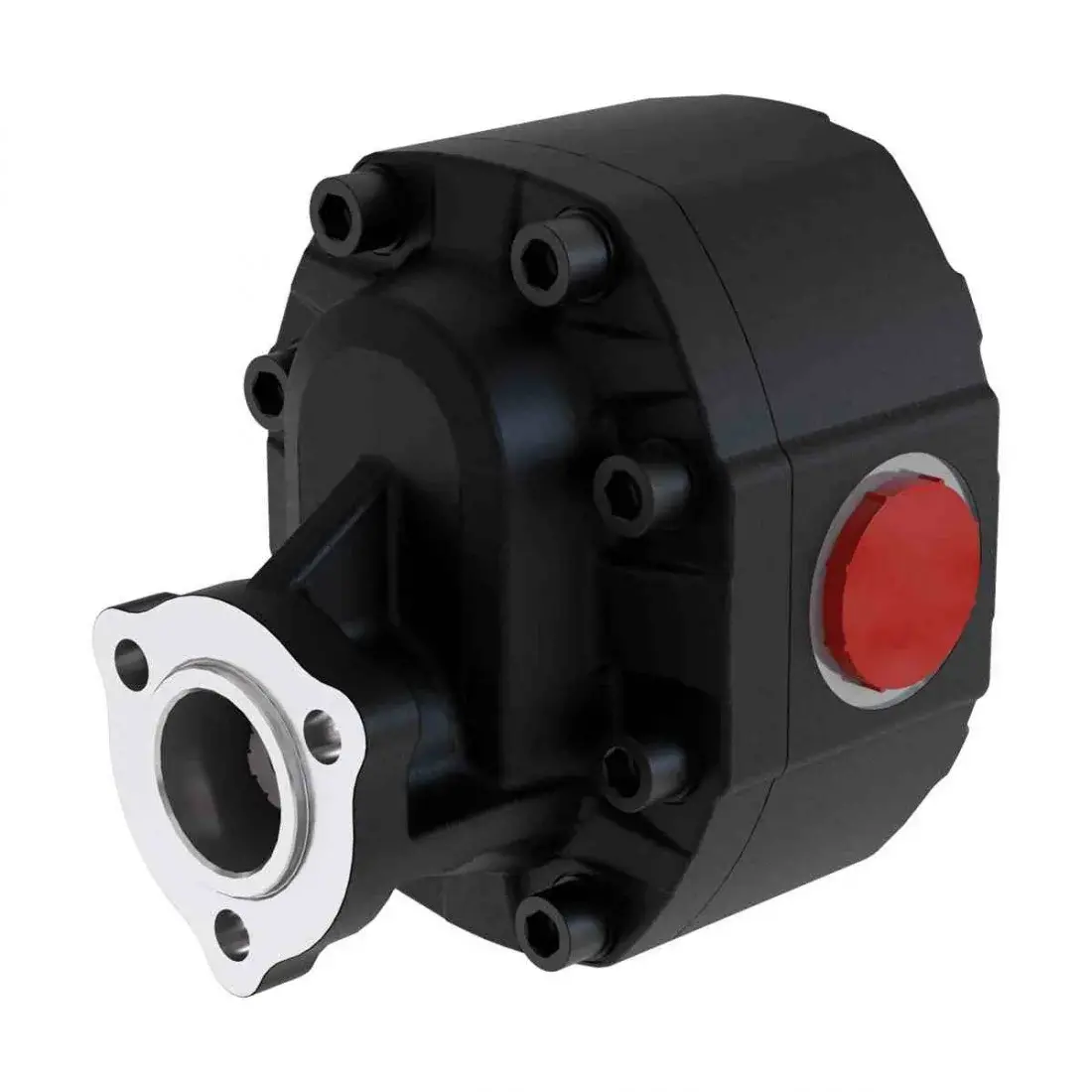

Blue Ascend Cast Iron Body Gear Pump - Group 40 (GP40)
When high-volume flow is the priority, the Blue Ascend GP40 delivers. This large-frame cast iron gear pump covers displacements from 63.8 to 148.3 cc/rev — territory typically reserved for demanding industrial and heavy mobile applications. The spheroidal graphite iron body handles the structural demands, while ISO and UNI mounting options make integration straightforward across a range of system designs.
Key Specifications:
- Displacement range: 63.8 – 148.3 cc/rev
- Maximum pressure: up to 280 bar (63.8 cc); 180 bar at 148.3 cc
- Maximum speed: up to 2,750 rpm
- Minimum speed: 300 rpm
- Body material: Spheroidal cast iron
- Gear type: Normal gear
- Mounting types: ISO and UNI
| Pump Type | Displacement (cc/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| GP40.063 | 63.8 | 280 | 2750 | 300 |
| GP40.073 | 72.2 | 280 | 2750 | 300 |
| GP40.087 | 86.1 | 260 | 2750 | 300 |
| GP40.109 | 107.3 | 240 | 2750 | 300 |
| GP40.133 | 131.6 | 220 | 2500 | 300 |
| GP40.151 | 148.3 | 180 | 2500 | 300 |
