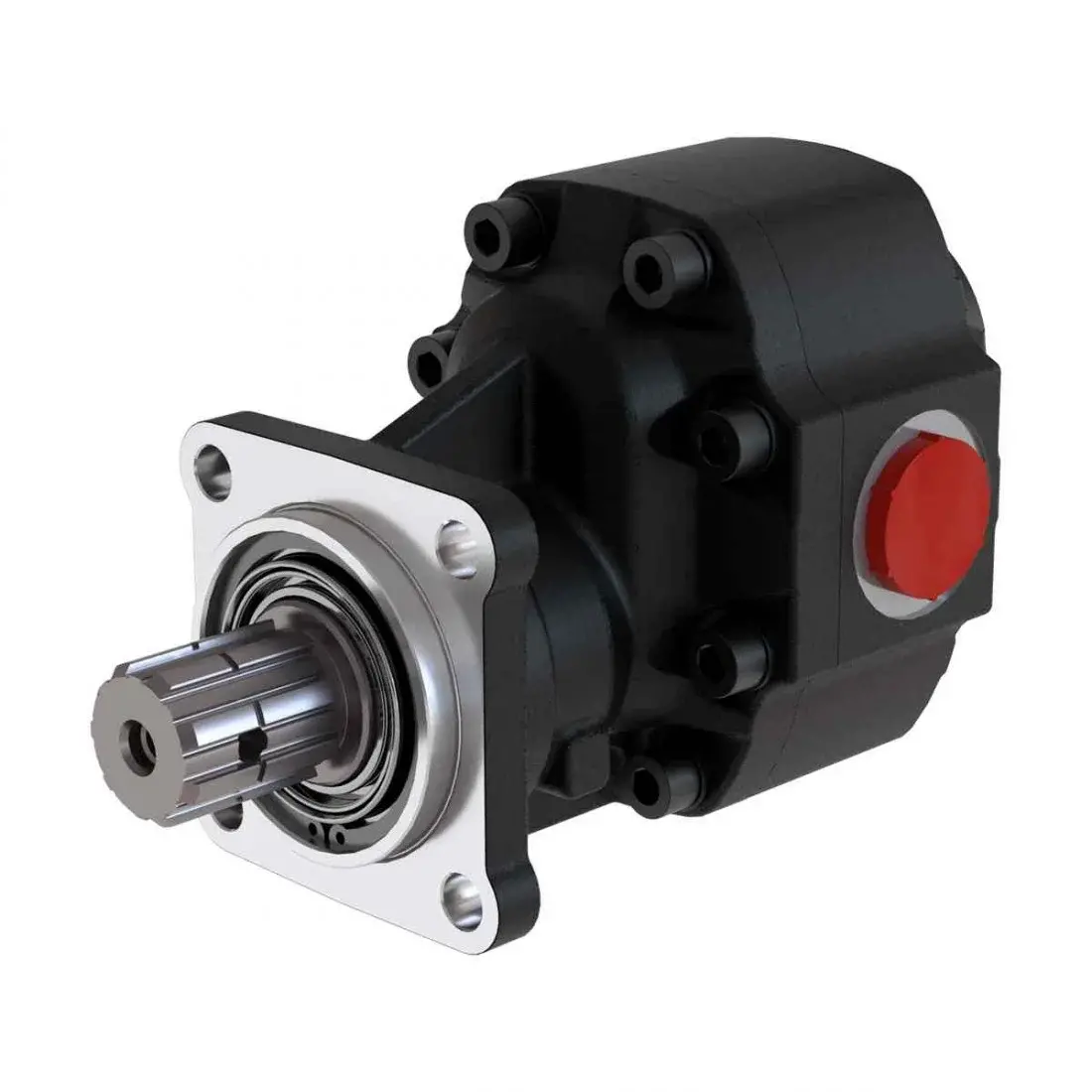

Blue Ascend Cast Iron Body Gear Pump - Group 30 (GP30)
The Blue Ascend GP30 is an alternative Group 30 cast iron gear pump offering UNI and ISO mounting configurations — useful where system design or interchangeability with European-standard pumps is a factor. Spanning 17.2 to 99.7 cc/rev across nine displacement sizes, with a maximum pressure of 300 bar at the smallest variant, the GP30 suits medium-to-large hydraulic systems across mobile and stationary applications.
Key Specifications:
- Displacement range: 17.2 – 99.7 cc/rev
- Maximum pressure: up to 300 bar (17.2 cc); tapering to 180 bar at largest
- Maximum speed: up to 3,000 rpm (smaller variants); 1,750 rpm at largest
- Minimum speed: 300 rpm
- Body material: Spheroidal cast iron
- Gear type: Normal gear
- Mounting types: ISO and UNI
| Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
| GP30.017 | 17,2 | 300 | 3000 | 300 |
| GP30.027 | 27,1 | 290 | 3000 | 300 |
| GP30.034 | 34,4 | 280 | 2750 | 300 |
| GP30.043 | 42,9 | 270 | 2500 | 300 |
| GP30.051 | 51,2 | 240 | 2500 | 300 |
| GP30.061 | 60,7 | 220 | 2000 | 300 |
| GP30.073 | 73,0 | 200 | 1750 | 300 |
| GP30.082 | 81,4 | 190 | 1750 | 300 |
| GP30.100 | 99,7 | 180 | 1750 | 300 |
