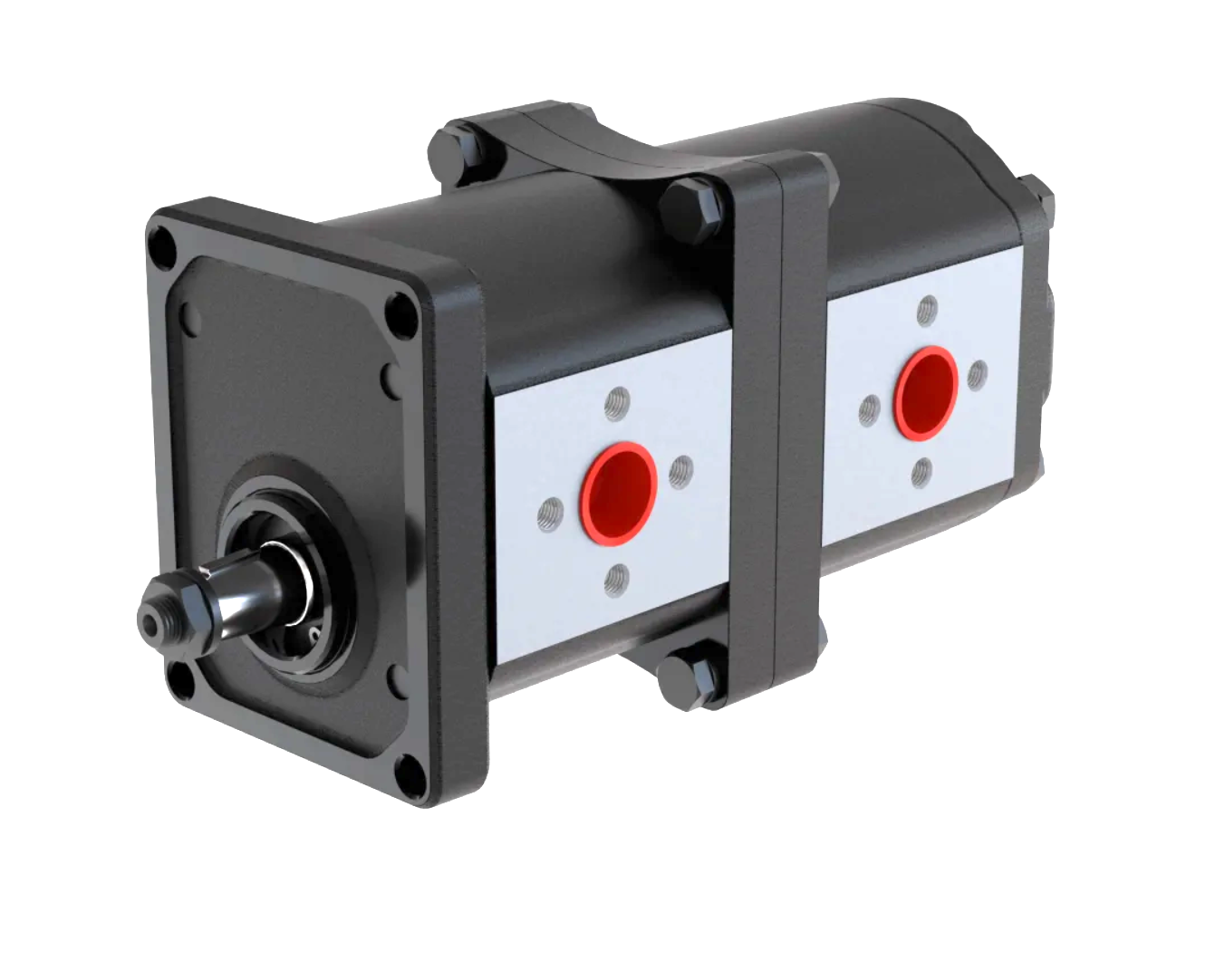

Blue Ascend Cast Iron Body Tandem Gear Pump, Group 30/30
The Group 30/30 tandem pairs two DKP30 units for high-volume dual-circuit applications. With 15 displacement options per section (17.0 – 100.0 cc/rev), this configuration handles the flow demands of larger mobile plant and industrial systems where two independent hydraulic circuits must operate from a single pump drive. Robust cast iron construction throughout.
Key Specifications:
- Displacement range (per section): 17.0 – 100.0 cc/rev
- Maximum pressure: up to 280 bar (smaller displacements); 180 bar at largest
- Maximum speed: up to 3,000 rpm
- Minimum speed: 500 rpm
- Body material: Spheroidal cast iron
- Gear type: Normal gear
- Configuration: Tandem (two-section)
| Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
| DKP30.170/*** | 17,0 | 280 | 3000 | 500 |
| DKP30.220/*** | 22,0 | 280 | 3000 | 500 |
| DKP30.270/*** | 27,0 | 280 | 3000 | 500 |
| DKP30.320/*** | 32,0 | 260 | 3000 | 500 |
| DKP30.340/*** | 34,0 | 260 | 3000 | 500 |
| DKP30.380/*** | 38,0 | 260 | 3000 | 500 |
| DKP30.430/*** | 43,0 | 260 | 3000 | 500 |
| DKP30.470/*** | 47,0 | 250 | 2500 | 500 |
| DKP30.510/*** | 51,0 | 240 | 2500 | 500 |
