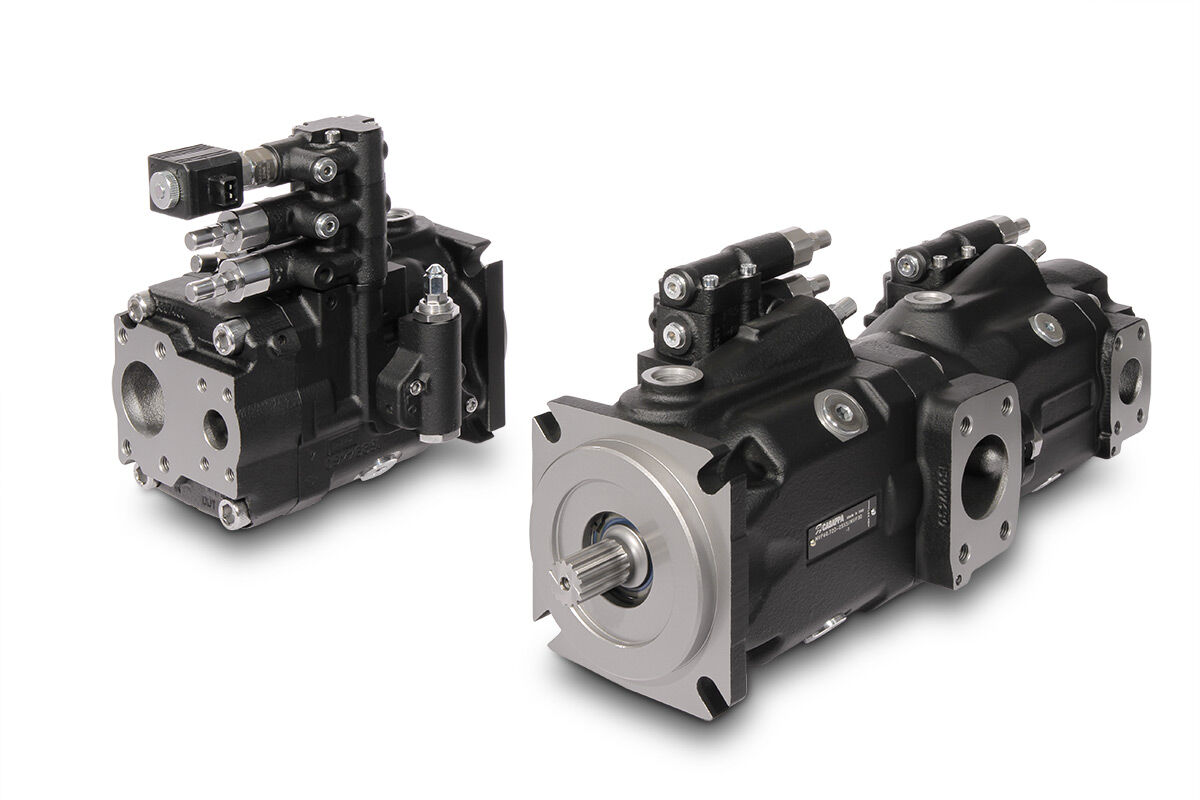

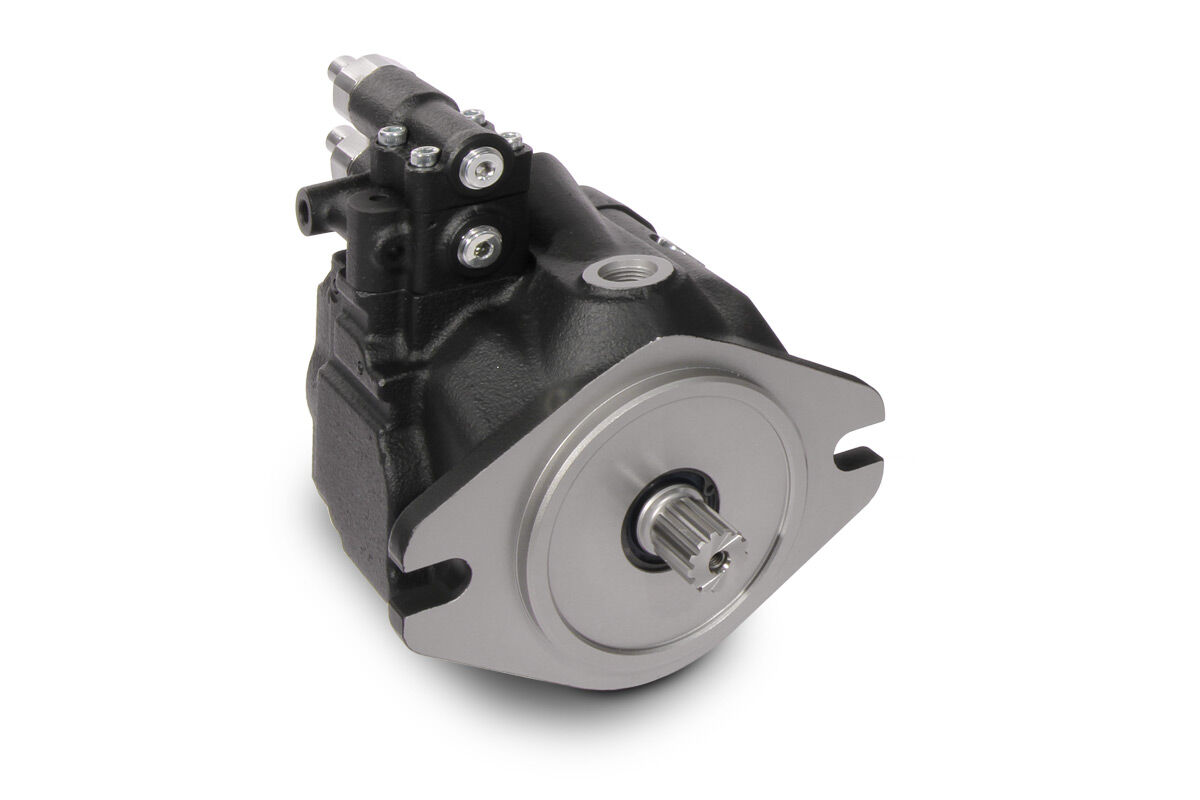

Casappa MVP Piston Pump
Casappa's MVP series are compact, swash plate axial piston pumps built for medium to high pressure open circuit mobile applications. The series spans three frame sizes — MVP 30, MVP 48, and MVP 60 — covering displacements from 28 to 84.7 cm³/rev. Engineered for long service life and low noise, they mount directly to engine motors and accept a wide range of hydraulic and electro-hydraulic displacement controls.
Key Specifications:
- Displacement range: 14–84.7 cm³/rev
- Fluid: Mineral oil to DIN 51524; fire resistant and biodegradable fluids also supported
- Optimal viscosity: 15–35 cSt
- Operating temperature: –25 °C to 80 °C continuous (Buna); –25 °C to 110 °C continuous (Viton)
- Max drain line pressure: 1.5 bar abs
- Rotation: Clockwise or anti-clockwise
- Mounting: Horizontal or vertical
- Controls: Pressure compensator, load-sensing, torque limiter, electro-proportional displacement, unloading valve
- Multi-pump configurations available via through drive or common inlet
| Model | Max Displacement (cm³/rev) | Max Continuous Pressure p1 (bar) | Max Peak Pressure p3 (bar) | Max Speed @ Vmax (rpm) | Max Delivery @ Vmax (l/min) | Max Power @ Vmax (kW) | Max Torque @ p1 cont (Nm) |
| MVP 30A·28 | 28 | 280 | 350 | 3500 | 98 | 45.7 | 124.8 |
| MVP 30A·34 | 34.8 | 250 | 315 | 2900 | 101 | 42.1 | 138.5 |
| MVP 48A·45 | 45 | 280 | 350 | 3000 | 135 | 63 | 200.5 |
| MVP 48A·53 | 53.7 | 250 | 315 | 2500 | 134 | 55.9 | 213.7 |
| MVP 60A·60 | 60 | 280 | 350 | 3000 | 180 | 84 | 267.4 |
| MVP 60A·72 | 72 | 280 | 350 | 2700 | 194 | 90.7 | 320.9 |
| MVP 60A·84 | 84.7 | 250 | 315 | 2300 | 194 | 81 | 337 |
