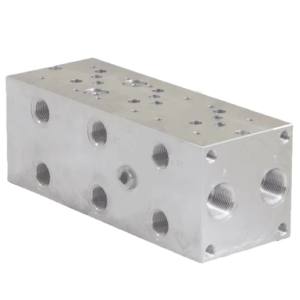

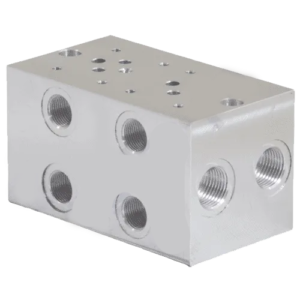

CETOP 3 & CETOP 5 Hydraulic Manifold Blocks
CETOP 3 and CETOP 5 hydraulic manifold blocks are compact, high-quality aluminium valve blocks designed to consolidate directional and modular valve mounting into a clean, leak-free assembly. Built to ISO 4401 standards, they eliminate the pipe and fitting clutter of traditional valve plumbing — reducing leak points, simplifying maintenance, and saving space on power packs and mobile equipment alike.
Available in single through to six-station configurations in both parallel and series circuit layouts, these blocks accept the full range of modular valves as well as standard CETOP-footprint solenoid directional valves.
Key specifications:
- CETOP3 (ISO 4401-03): up to 60 l/min flow, max 315 bar
- CETOP5 (ISO 4401-05): up to 100 l/min flow, max 315 bar
- Stations: 1 to 6 sections (standard range)
- Circuit options: parallel or series

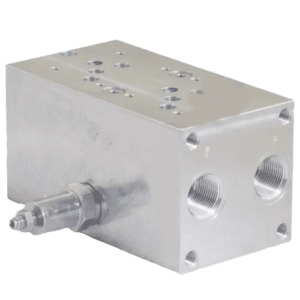

- Available with or without integrated pressure relief valve
- Material: aluminium alloy
- Port connections: BSP (BSPP) standard
| Product No. | Type | Model | Max. Flow (litre/min) | Max. Pressure (bar) |
| HP-NG6-1 | CETOP 3 Manifold | Parallel without relief | 40 | 250 |
| HP-NG6-2-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-3-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-4-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-5-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-6-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-7-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG6-8-RV-S | CETOP 3 Manifold with Relief Valves (Series) | Series with relief | 40 | 250 |
| HP-NG610-1-RV | CETOP 5 Manifold with Relief Valves | Parallel with relief | 80 | 250 |
| HP-NG10-2-RV | CETOP 5 Manifold with Relief Valves | Parallel with relief | 80 | 250 |
| HP-NG10-4-RV | CETOP 5 Manifold with Relief Valves | Parallel with relief | 80 | 250 |
| LVS-C-MO-...-3/8 | Special Blocks | Normally closed | 15 | 200 |
| BLPV-C-MO-...-3/8 | Special Blocks | Normally closed | 15 | 200 |
| BLPV-C-MO-...-3/8-B* | Special Blocks | Normally closed (with banjo connection) | 15 | 200 |
