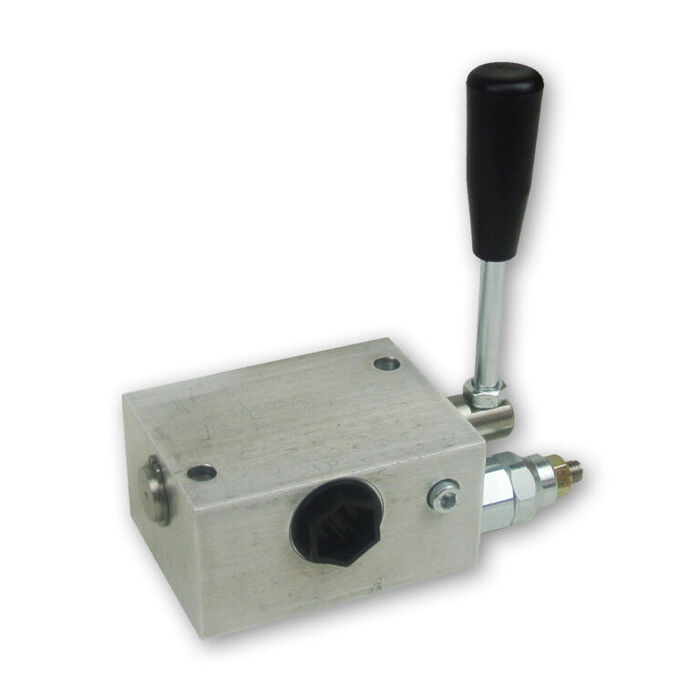

M+S BD Series Handle Operated Directional Control Valve with Relief
Manual directional control purpose-built for orbital motor circuits. The BD Series, manufactured in Europe by M+S Hydraulic, is a handle operated directional control valve with integrated relief, designed to provide direct, intuitive flow direction and pressure protection in a single unit. Ideal for mobile hydraulic installations where simplicity and reliability matter — from agricultural machinery to compact construction equipment.
Key Specifications
- Series: BD Series
- Operation: Manual handle operated
- Integrated relief valve
- Designed for orbital motor circuit control
| Part | Motor Type | A/B Ports | Max Cont Flow | Max Cont Press Drop |
| BDR 1205/25A | MP/MR/MH/MPYN/MRYN | 1/2” BSPP | 50 lpm | 30-250 bar |
| BDS 1205/25A | MS | 1/2” BSPP | 50 lpm | 30-250 bar |
