Check Valve Female Female Manifold

Check Valve Female Female Manifold

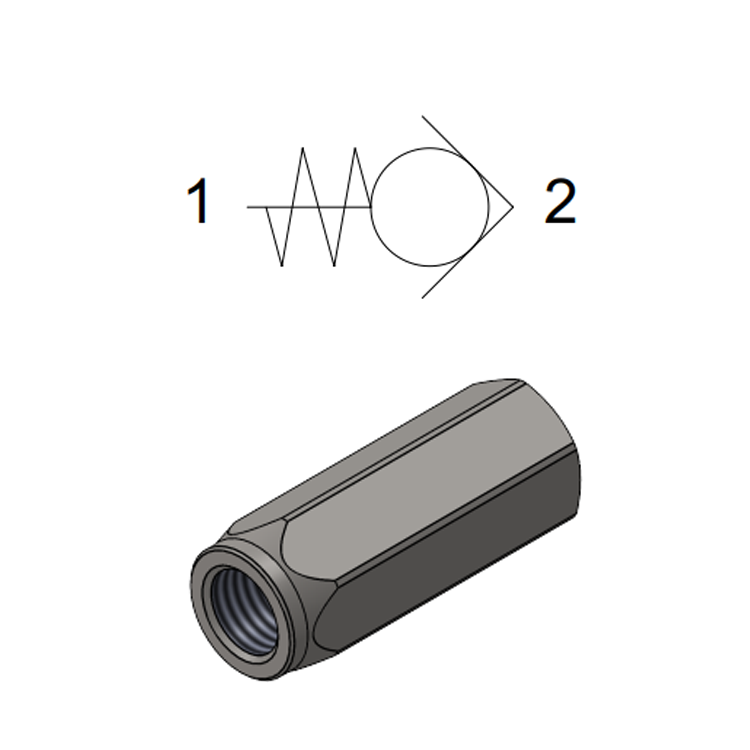

Inline check valve in a female-female (F-F) BSPP body, allowing direct line installation without additional adapters. Flow passes freely from port 1 to port 2; reverse flow is blocked. With port sizes from 1/4" to 1-1/2" BSPP and a wide choice of cracking pressures, it covers a broad range of circuit applications across mobile plant, agriculture, and industrial systems.

Key Specifications

• Type: Inline check valve, female-female BSPP connections
• Port sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" BSPP
• Max. pressure: 350 bar (1/4"–3/8") | 320 bar (1/2") | 300 bar (3/4"–1-1/2")
• Max. flow: 15 l/min (1/4") up to 350 l/min (1-1/2")
• Cracking pressure options: 0.5–0.7 bar (standard), 1 bar, 3 bar, 5 bar, 8 bar
• External finish: Zinc plated
• Fluid temperature: -20°C to +90°C
• Filtration standard: ISO 4406
