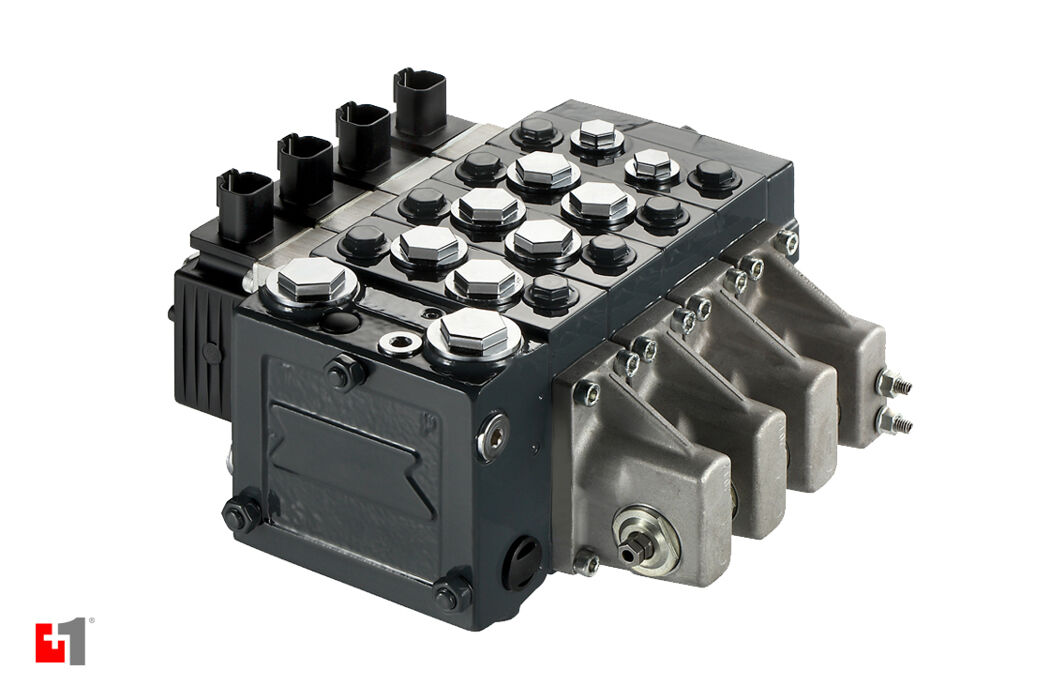

Danfoss PVG 16 Load Sense Sectional Valve

Danfoss PVG 16 Load Sense Sectional Valve

Low-flow PVG 16 covers simple to complex needs. The Danfoss PVG 16 is a compact, load-sensing proportional valve designed for mobile machinery where precise, efficient flow control matters. PVG 16 targets the low-flow segment — covering everything from simple on/off switching to sophisticated electrohydraulic control in a single modular platform. Its slice-stack architecture means you build exactly what the application needs, nothing more.

Key Specifications

• Flow rating: up to 65 l/min (work ports A/B up to 60 l/min)
• Inlet pressure (continuous / intermittent): 350 bar / 400 bar
• Work port pressure (continuous / intermittent): 380 bar / 420 bar
• Spool sizes: 5, 10, 25, 40, or 60 l/min
• Operating temperature: −30°C to +60°C
• Supply voltage (PVE actuator): 11–32 VDC
• Oil viscosity operating range: 12–75 mm²/s
• Module width: 40 mm per PVB section

Configuration Options

• The PVG 16's modular design supports a wide range of build combinations:
• Compensated and uncompensated basic modules
• Closed or open neutral spool positions; float and asymmetrical flow options
• Mechanical (PVM), hydraulic (PVH), and electrical (PVEO/PVEA) actuation
• P-channel check valves and shock valves
• BSP and UNF port threads
• CAN bus-capable actuators for simplified machine wiring and bidirectional communication
• Stackable with PVG 32, 100, and 120 for larger system integration

The PVE Series 6 electrohydraulic actuator adds closed-loop spool control, built-in fault monitoring, and high tolerance to temperature variation — suited to demanding electrohydraulic system builds.
