Direct Acting Relief Valve (Cartridge-30 l/min)

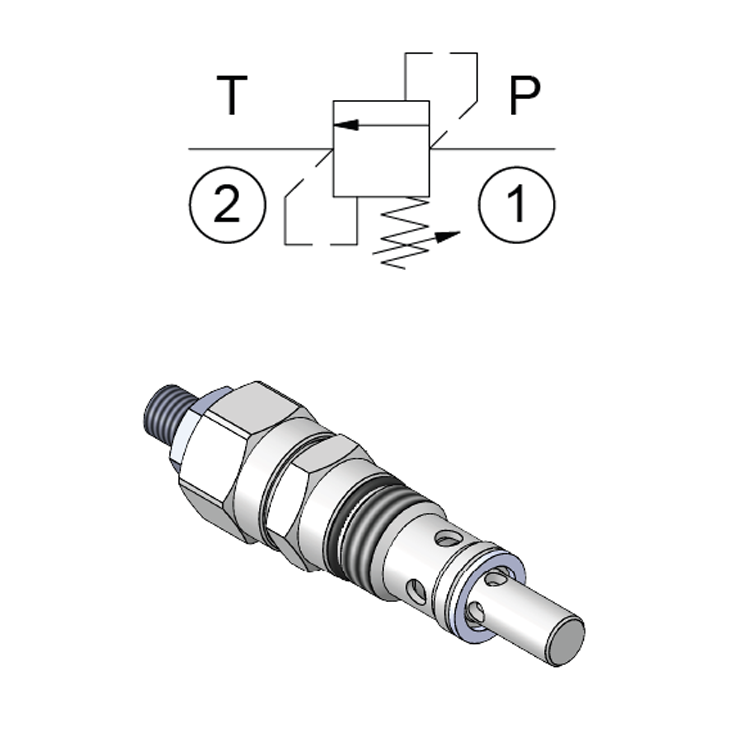

Cartridge relief valve rated to 30 l/min in an M20x1.5 thread format. It shares the same four-range setting architecture as the RVD-20 but in a larger cartridge body suited to mid-flow manifold applications.
The same three adjustment options are available: socket screw, tamper cap, or handknob with locknut.
Key Specifications
- Type: Direct acting cartridge relief valve
- Thread: M20x1.5
- Max. pressure: 350 bar
- Max. flow: 30 l/min

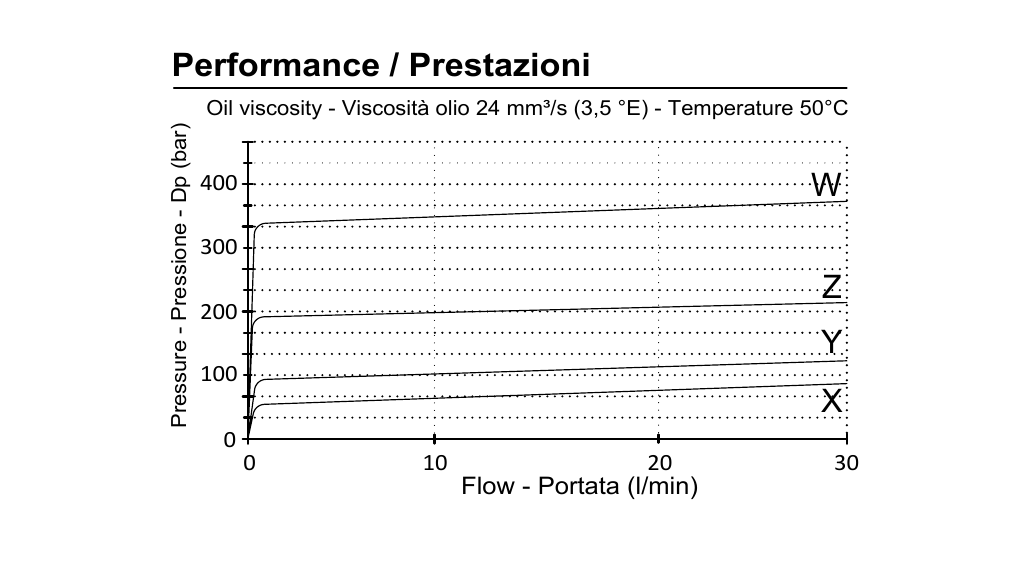

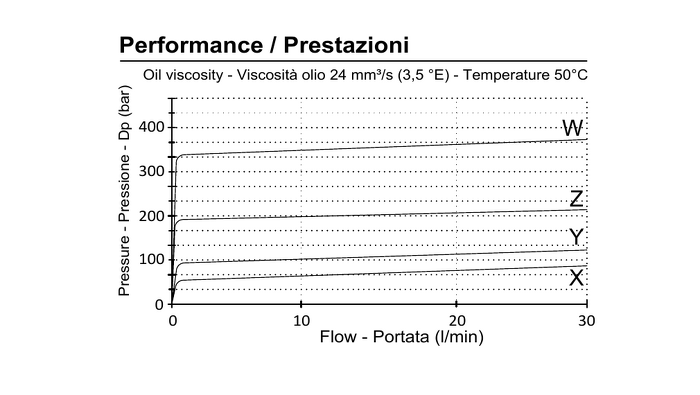

- Setting ranges: X: 5–50 bar | Y: 30–100 bar | Z: 50–210 bar | W: 100–350 bar
- Standard settings: 50 / 100 / 200 / 300 bar (at 5 l/min)
- Cavity code: DO-590.002.24.10
- Adjustment: Socket screw (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
| Thread (P) | Cavity Code | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| M20x1.5 | DO-590.002.24.10 | 350 | 30 | X: 5-50 bar | 50 |
| M20x1.5 | DO-590.002.24.10 | 350 | 30 | Y: 30-100 bar | 100 |
| M20x1.5 | DO-590.002.24.10 | 350 | 30 | Z: 50-210 bar | 200 |
| M20x1.5 | DO-590.002.24.10 | 350 | 30 | W: 100-350 bar | 300 |
