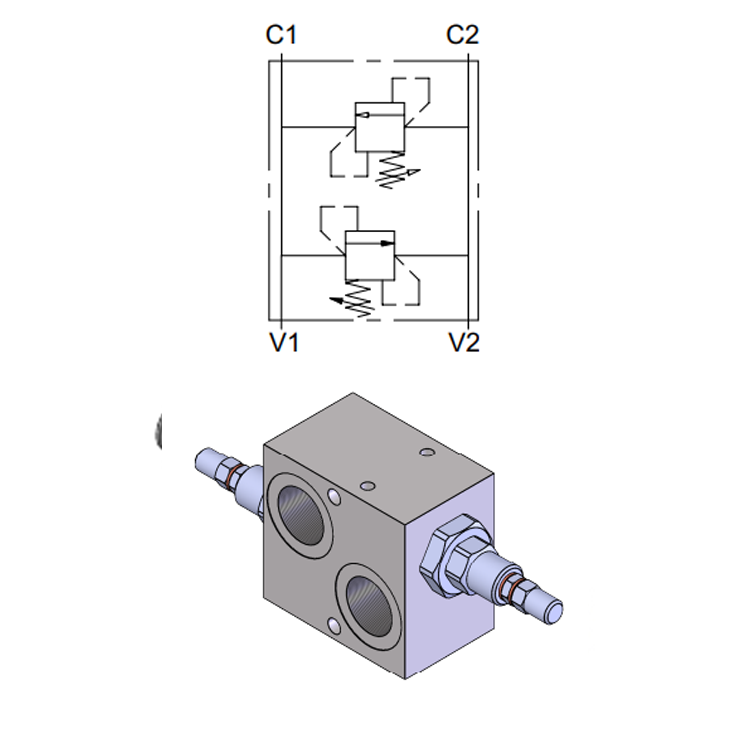

Dual Cross-Over Direct Acting Relief Valve (1inch Ports)
large-port variant of the cross-over shock valve, rated for 1" BSPP connections and up to 160 l/min. It is sized for high-flow hydraulic motor and drive circuits where the smaller DI-180° sizes would create unacceptable back-pressure at operating flow.
The two high-pressure setting ranges (20–200 bar and 50–400 bar) align with heavy-duty mobile and industrial motor protection requirements.
Key Specifications
- Type: Dual cross-over direct acting relief valve, 1" BSPP
- Port size: 1" BSPP
- Max. pressure: 350 bar
- Max. flow: 160 l/min
- Setting ranges: Z: 20–200 bar (std 160 bar) | W: 50–400 bar (std 180 bar)
- Manifold material: Zinc plated steel
- Adjustment: Screw with steel cap (standard) | Socket screw | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
Fluid temperature: -20°C to +90°C
| Thread (P-T) | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 1" BSPP | 350 | 160 | Z: 20-200 bar | 160 |
| 1" BSPP | 350 | 160 | W: 50-400 bar | 180 |
