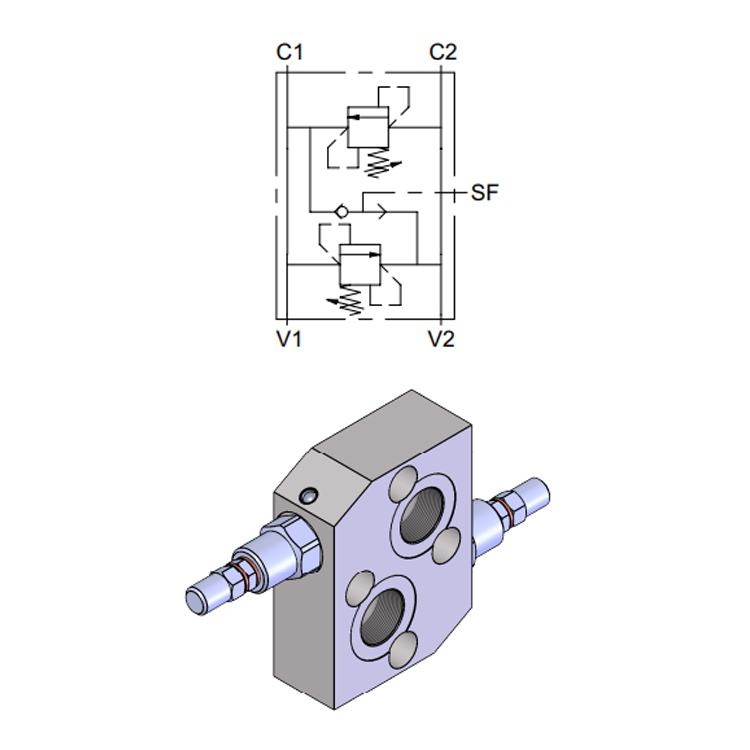

Dual Cross-Over Relief Valve, OMT Motor Flangeable
Dual cross-over shock valve designed to flange-mount directly onto the Danfoss OMT high-torque orbital motor. The OMT's larger displacement and higher working flow rates are reflected in the 3/4" BSPP port size and 100 l/min max flow rating.
Like the OMP/OMR and OMS variants, the direct flange mounting removes all external hose connections between motor and shock valve, reducing the risk of external leakage and minimising the installation footprint.
Key Specifications
- Type: Dual cross-over direct acting relief valve, OMT motor flange mount
- Port size: 3/4" BSPP
- Max. pressure: 350 bar
- Max. flow: 100 l/min

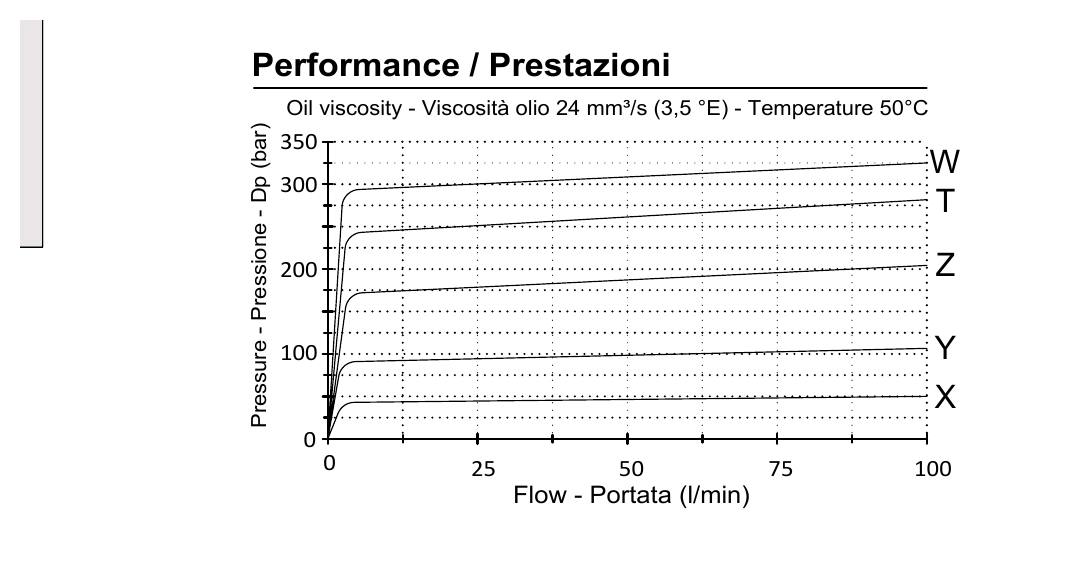

- Setting ranges: X: 10–50 bar | Y: 20–100 bar | Z: 10–180 bar (std, 90 bar) | T: 50–250 bar | W: 80–300 bar
- Manifold material: Zinc plated steel
- Adjustment: Screw with steel cap (standard) | Tamper cap | Handknob with locknut
- Seal options: NBR (standard) | Viton on request
- Fluid temperature: -20°C to +90°C
| Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Setting Range | Std Setting (bar) |
| 3/4 BSPP | 350 | 100 | X: 10-50 bar | 30 |
| 3/4 BSPP | 350 | 100 | Y: 20-100 bar | 70 |
| 3/4 BSPP | 350 | 100 | Z: 10-180 bar (Std) | 90 |
| 3/4 BSPP | 350 | 100 | T: 50-250 bar | 130 |
| 3/4 BSPP | 350 | 100 | W: 80-300 bar | 150 |
