Dual Pilot Operated Check Valve

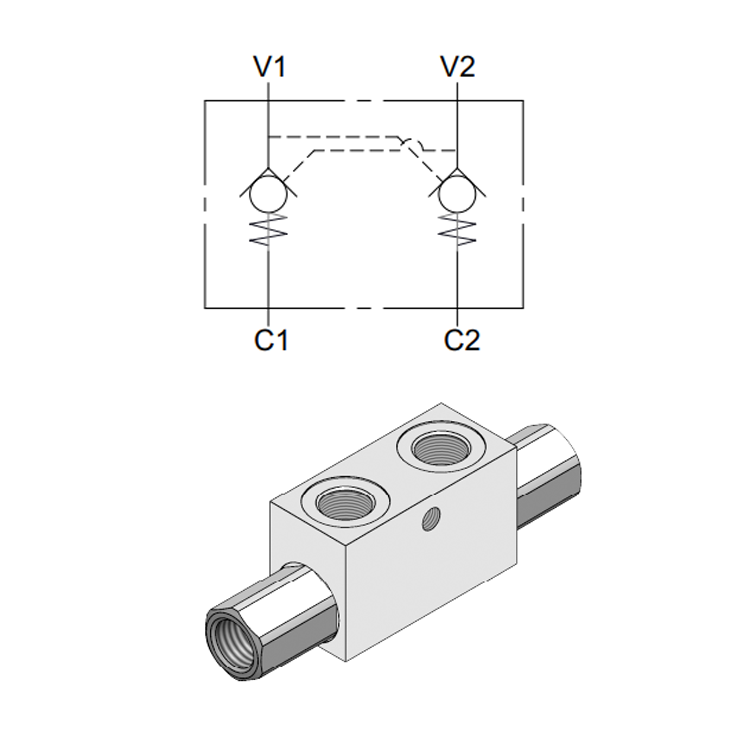

Dual-circuit providing pilot-operated check functionality on both the A and B lines simultaneously. When the circuit is pressurised in either direction, the pilot signal from one side opens the check on the opposing line — enabling full cylinder control with load-holding in both directions.
The block-body format, port range, and performance characteristics mirror the POC-1 series.
Key Specifications
- Type: Dual pilot operated check valve, manifold mount
- Port sizes (V1-V2 / C1-C2): 1/4", 3/8", 1/2", 3/4" BSPP
- Max. pressure: 350 bar

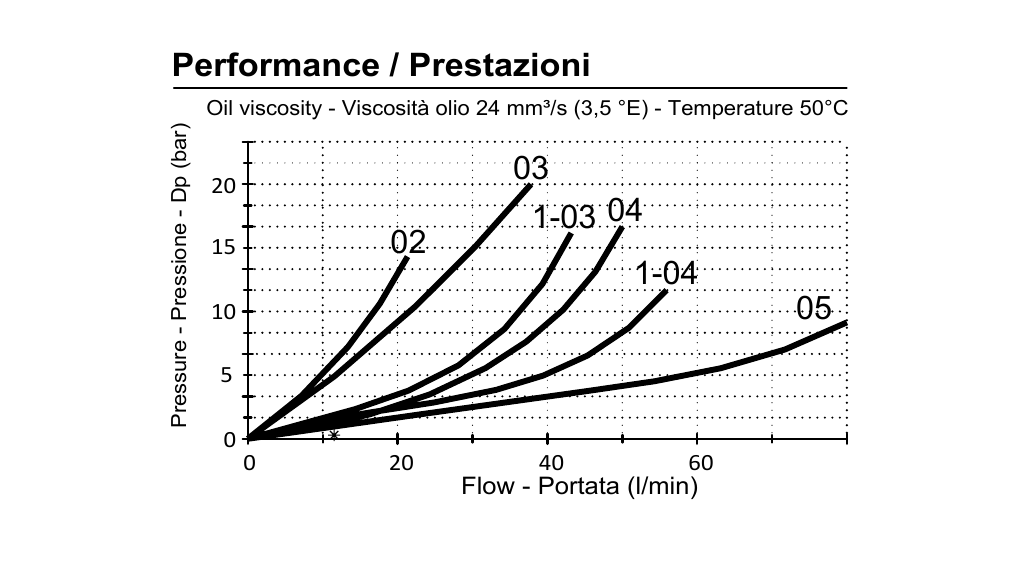

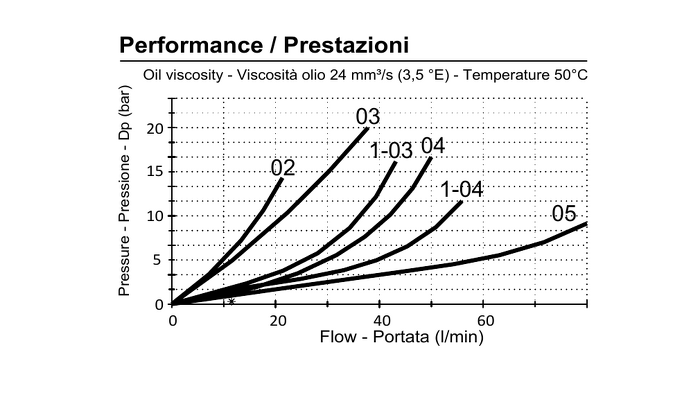

- Max. flow: 20 l/min (1/4") up to 100 l/min (3/4")
- Pilot ratio: 4:1 to 5.5:1 (varies by port size — see datasheet)
- Cracking pressure: varies by size (see datasheet)
- Seal options: NBR 70 Shore A (standard)
- Pilot piston O-ring: available (M) or without (N)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
| Thread V1-V2 | Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 1/4 BSPP | 1/4 BSPP | 350 | 20 | 5.5:1 |
| 3/8 BSPP | 3/8 BSPP | 350 | 35 | 5.5:1 |
| 3/8 BSPP | 3/8 BSPP | 350 | 45 | 5:1 |
| 1/2 BSPP | 1/2 BSPP | 350 | 50 | 5:1 |
| 1/2 BSPP | 1/2 BSPP | 350 | 70 | 4:1 |
| 3/4 BSPP | 3/4 BSPP | 350 | 100 | 4:1 |
