Dual Pilot Operated Check Valve, Cylinder Stud Fit-In

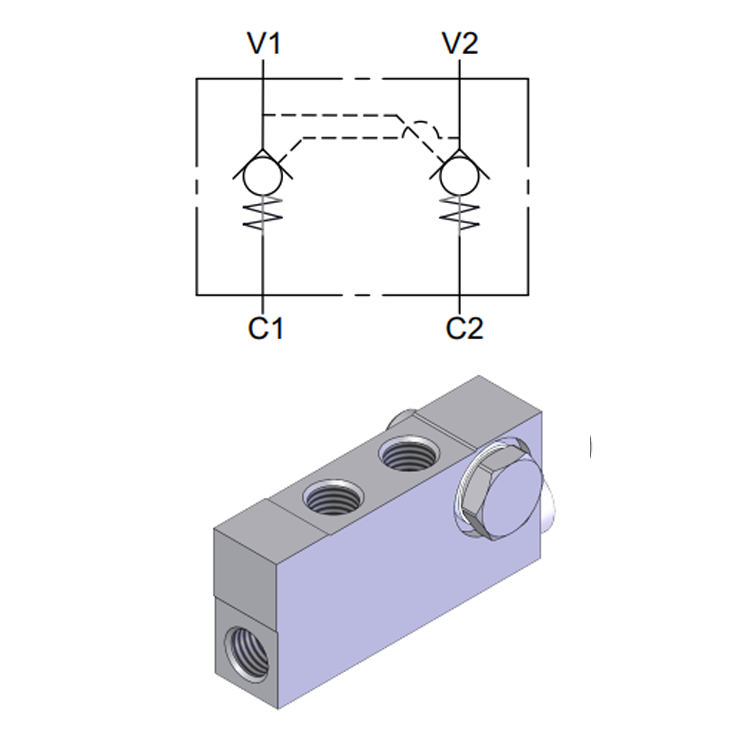

Dual pilot operated check valve with a cylinder stud fit-in body — it mounts directly onto the cylinder port studs, eliminating all external hose runs between the valve and the cylinder. Internal-external bonded seals and the banjo bolt are included in supply.
This installation method is widely used in mobile plant — particularly on excavator arm and boom circuits — where a compact, rigid, low-leakage load-holding solution is required.

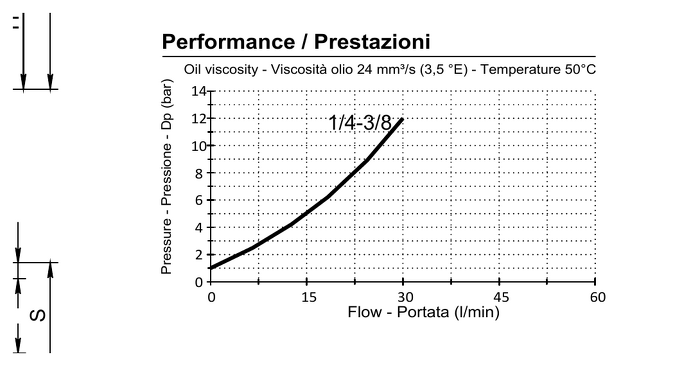

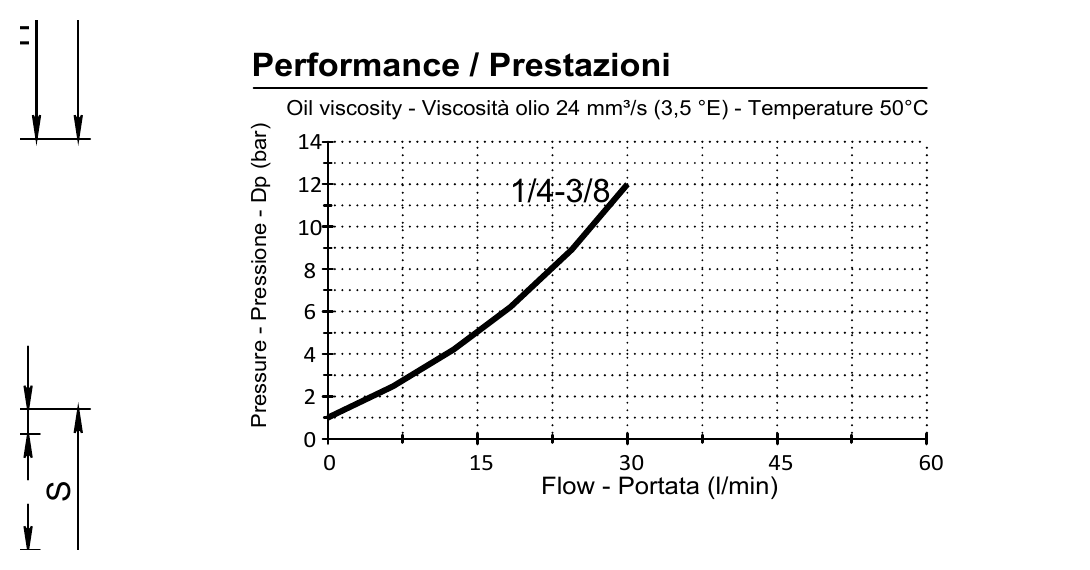

Key Specifications
- Type: Dual pilot operated check valve, cylinder stud mount
- Port sizes (V1-V2 / C1-C2): 1/4", 3/8", 1/2" BSPP
- Max. pressure: 300 bar
- Max. flow: 20 l/min (all sizes)
- Pilot ratio: 4.9:1 (all sizes)
- Cracking pressure: 1 bar
- Includes: internal-external bonded seals, banjo bolt
- Seal options: NBR 70 Shore A (standard)
- Pilot piston O-ring: available (M) or without (N)
- External finish: Zinc plated
- Fluid temperature: -20°C to +90°C
| Thread V1-V2 | Thread C1-C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 1/4 BSPP | 1/4 BSPP | 300 | 20 | 4.9:1 |
| 3/8 BSPP | 3/8 BSPP | 300 | 20 | 4.9:1 |
| 1/2 BSPP | 1/2 BSPP | 300 | 20 | 4.9:1 |
