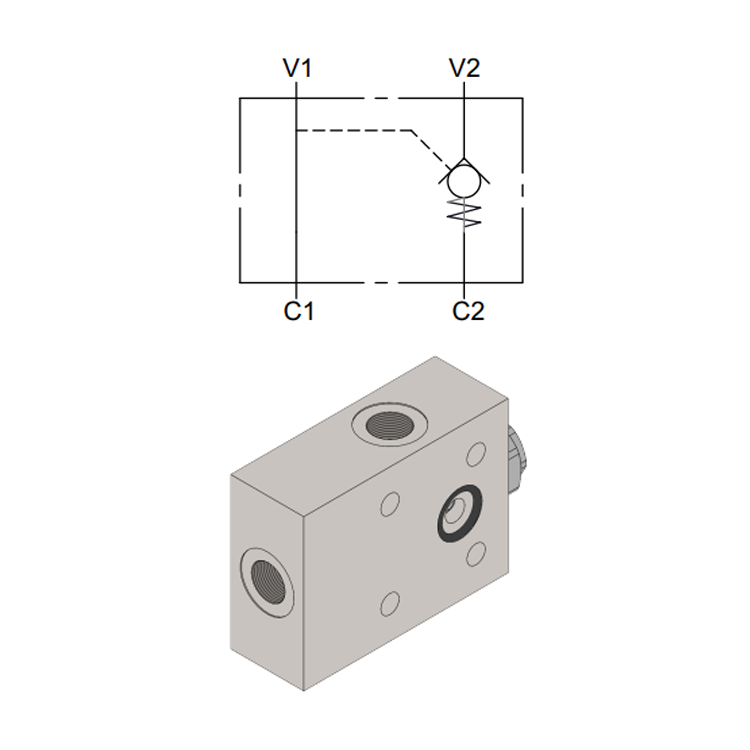

Flangiable Single Pilot Operated Check Valve
Single pilot operated check valve designed for direct flange mounting to a cylinder or manifold face. The 4-bolt flange pattern eliminates hose connections at the valve-to-cylinder interface, reducing the risk of external leakage and minimising plumbing complexity.
Available in 3/8" and 1/2" BSPP work port sizes with an aluminium body as standard. A zinc-plated steel version is also available — contact FPD for details.
Key Specifications
- Type: Single pilot operated check valve, flange mount
- Work port sizes (V1-V2-C1): 3/8", 1/2" BSPP
- Pilot port (C2): Ø9 mm
- Max. pressure: 350 bar
- Max. flow: 40 l/min (3/8") | 60 l/min (1/2")
- Pilot ratio: 4:1 (both sizes)
- Cracking pressure: 3 bar (standard)
- Seal options: NBR 70 Shore A (standard)
- Body material: Zinc plated steel (standard); aluminium on request
- Fluid temperature: -20°C to +90°C
| Thread V1-V2-C1 | Thread C2 | Max. Pressure (bar) | Max. Flow (l/min) | Pilot Ratio |
| 3/8 BSPP | Ø9 | 350 | 40 | 4:1 |
| 1/2 BSPP | Ø9 | 350 | 60 | 4:1 |
