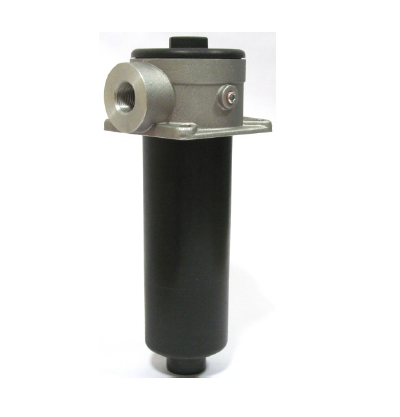

Hydroline RPF – Tank Immersed Filter
The Hydroline RPF is a slimline aluminium/plastic tank-immersed filter available in three port sizes for flows to 150 LPM. Two element length options — 220 mm and 300 mm — provide flexibility for different tank depths and flow requirements, at a maximum working pressure of 7 bar.
Key Specifications
- Construction: Aluminium/plastic
- 3 models: RPF-06, RPF-08, RPF-10
- Max flow: 150 LPM
- Max pressure: 7 bar | Test: 12 bar | Burst: 16 bar
- Bypass valve: 1 bar standard
- Max temperature: 80°C
- Fluid: Mineral/petroleum based oils
- Port sizes — BSPP: 3/4" (RPF-06) | 1" (RPF-08) | 1-1/4" (RPF-10)
- Port thread options: BSPP (standard), NPT, UNF
- Element length options: L1 (220 mm) | L2 (300 mm)
- Filtration grades: 10/25 µm nominal; 10/25 µm absolute
- Clog indicator: optional visual or electrical, ordered separately
| Model | Port Size (BSPP std) | Max Pressure (bar) | Bypass (bar) | Max Temp (°C) | Element Length Option | Filtration Options (µm) | Max Flow (LPM) |
| RPF-06 | 3/4" | 7 | 1 | 80 | L1 (220 mm) / L2 (300 mm) | 10/25 nom; 10/25 abs | 80 |
| RPF-08 | 1" | 7 | 1 | 80 | L1 (220 mm) / L2 (300 mm) | 10/25 nom; 10/25 abs | 120 |
| RPF-10 | 1-1/4" | 7 | 1 | 80 | L1 (220 mm) / L2 (300 mm) | 10/25 nom; 10/25 abs | 150 |
