Inline Straight Rotary Coupling
A single-passage inline rotating joint designed for hydraulic lines that require continuous or intermittent rotation. Compact and straight-through in configuration, these couplings allow one end to rotate freely relative to the other — ideal for preventing hose twist and torsional stress in rotating equipment. Available in BSPP port sizes from ¼" to 2".
Key Specifications
- Fluid viscosity standard: ISO 3448
- Filtration standard: ISO 4406
Available Port Sizes, Pressure Ratings & Weights
- 1/4" BSPP — 200 bar max. (rotating) | 400 bar max. (static)
- 3/8" BSPP — 200 bar max. (rotating) | 400 bar max. (static)
- 1/2" BSPP — 150 bar max. (rotating) | 300 bar max. (static)
- 3/4" BSPP — 150 bar max. (rotating) | 300 bar max. (static)
- 1" BSPP — 100 bar max. (rotating) | 300 bar max. (static)
- 1"1/4 BSPP — 100 bar max. (rotating) | 300 bar max. (static)
- 1"1/2 BSPP — 80 bar max. (rotating) | 300 bar max. (static)
- 2" BSPP — 50 bar max. (rotating) | 250 bar max. (static)

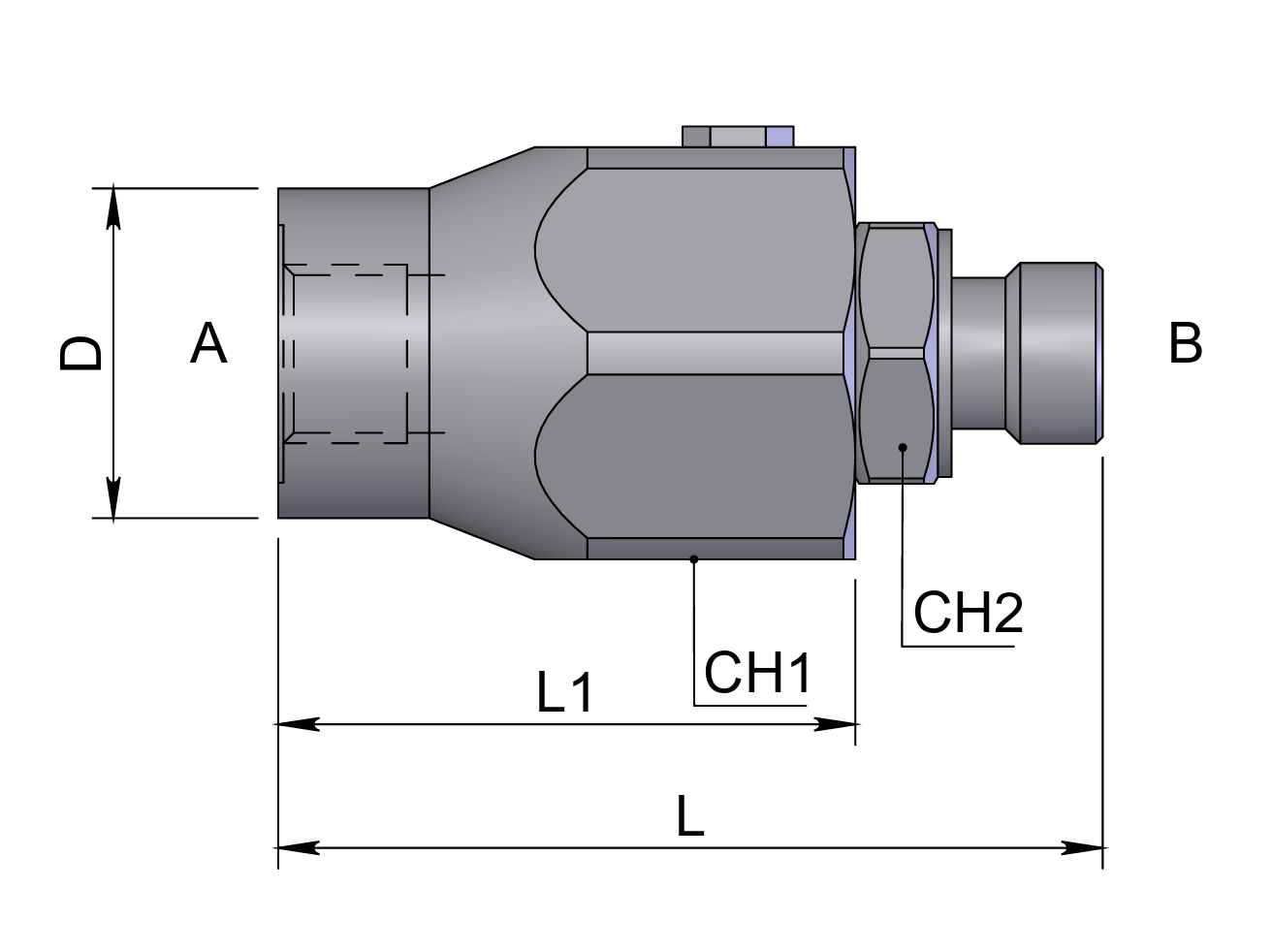

| Ports A-B | L | L1 | CH1 | CH2 | OD | P max (bar) in rotation | P max (bar) |
| 1/4 | 61 | 42 | 30 | 19 | 24 | 200 | 400 |
| 3/8 | 66 | 44 | 34 | 24 | 25 | 200 | 400 |
| 1/2 | 71 | 47 | 36 | 27 | 32 | 150 | 300 |
| 3/4 | 80 | 50 | 45 | 34 | 49.5 | 150 | 300 |
| 1" | 90 | 57 | 50 | 41 | 54.5 | 100 | 300 |
| 1"1/4 | 101 | 63 | 55 | 50 | 60 | 100 | 300 |
| 1"1/2 | 110 | 70 | 65 | 55 | 69.5 | 80 | 300 |
| 2" | 118 | 75 | 75 | 65 | 84.5 | 50 | 250 |
